Relationships
Relationships are dictionary definitions that express a logical
connection between the real-world objects of an information network.
Most relationships involve two entities and are called binary
relationships. System Dictionary supports binary relationships, as well
as N-ary relationships that involve from three to six entities. A
relationship serves two main purposes:
* Relationships express a connection between entities. The fact can be
expressed that a VPLUS form named WINERY contains a field named
VINTAGE by creating the relationship WINERY contains VINTAGE using
the relationship type FORM contains ELEMENT. This dictionary
definition documents the true connection between the form and the
field.
* Relationships describe a context in which an entity is used. As
already mentioned, an entity has attribute values that provide a
general description of an object. Relationships also have attribute
values. They document the entity in a specific context or usage.
A relationship definition has three parts:
* An ordered list of the entities involved in the relationship.
* A relationship type, a dictionary category to which the relationship
belongs. A relationship type is an ordered list of entity types
paired with a connecting name called a relationship class.
* Attribute values that further define and characterize the
relationship (or, in some cases, one of the entities in the
relationship).
These relationship components are discussed next.
Specifying Entity Lists
A relationship does not have a name. It has a list of names representing
the entities involved in the relationship. Before you can create a
relationship, all the entities in the entity list must already exist.
Also, if you delete one of the entities involved in a relationship,
System Dictionary automatically deletes the relationship. The order of
the entity list is significant. The relationship CUSTOMER-ADDRESS
contains LAST-NAME, for example, is not the same as LAST-NAME contains
CUSTOMER-ADDRESS.
Specifying Relationship Types
Relationships belong to categories called relationship types. A
relationship type has two parts: an ordered list of entity types that
serves as a template for defining the entity list, and a relationship
class that expresses the action or connection of the relationship. When
you create or access a relationship, you must specify the relationship
type.
For example, RECORD contains ELEMENT is a relationship type in the System
Dictionary core set. This relationship type requires that all
relationships of this type must involve two entities. The first entity
must be of type RECORD, and the second must be of type ELEMENT. The
relationship class (contains) expresses the fact that the record contains
the element.
When you create or access a relationship, you must use a relationship
type that already exists in the dictionary or System Dictionary issues an
error. System Dictionary comes with a built-in set of relationship types
called core set relationship types. You can also add an extended set of
relationship types. You can create relationships using any relationship

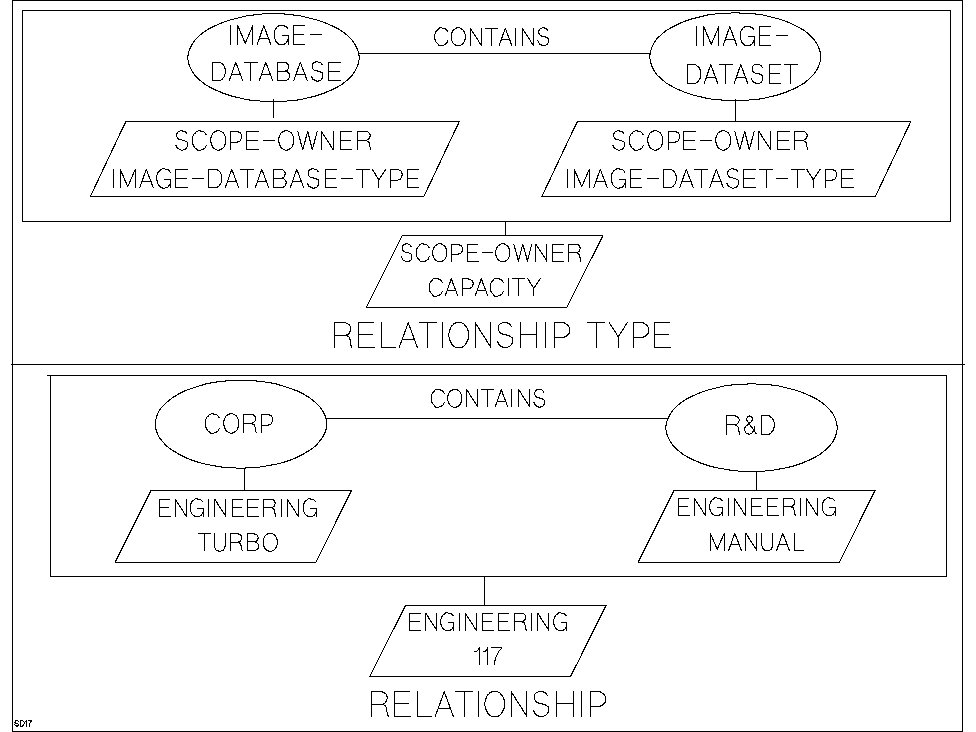

type in the core set or extended set. Figure 3-4 illustrates an example
of a relationship type and a relationship occurrence of that relationship
type. In the example, IMAGE-DATABASE and IMAGE-DATASET are the entity
types of the relationship type, CONTAINS is the relationship class, and
SCOPE-OWNER, IMAGE-DATABASE-TYPE, and IMAGE-DATASET-TYPE are attributes
of the entity types. SCOPE-OWNER and CAPACITY are attributes of the
relationship type.
In the RELATIONSHIP shown, ENGINEERING, TURBO, and MANUAL are the
attribute values of the entities CORP and R&D, while ENGINEERING and 117
are the attribute values of the relationship.
![[]](../../pic3k/M010489/F03043c50.gif)
Figure 3-4. Relationship Types vs. Relationships
Specifying Relationship Classes
In System Dictionary, a relationship type and, consequently, all
relationships belonging to the type are qualified by a relationship class
that describes the connection or action of the relationship. The System
Dictionary core set includes relationship types like contains, uses,
redefines, and other commonly used connecting words.
The relationship class is required when more than one relationship type
in the dictionary involves the same ordered list of entity types.
In the core set, for example, there are three relationship types
involving element pairs:
ELEMENT contains ELEMENT
ELEMENT redefines ELEMENT
ELEMENT references ELEMENT
The first type describes a parent-child relationship. The second
describes elements that share common storage space in a program. The
third type documents an element that references another element, as in a
Pascal type reference. When creating or retrieving relationships defined
with non-unique entity type lists like these, you must specify the
relationship class as a qualifier or System Dictionary issues an error.
Remember that a relationship type is an entity-type list paired with a
relationship class. Many of these pairs are built into the dictionary
core set, and you can extend the dictionary structure by adding your own
pairs. When you create a relationship, however, you cannot mix and match
entity-type lists and relationship classes. You must use an existing
pair, or System Dictionary issues an error stating that the relationship
type does not exist.
Relationship Attribute Values
Relationships have attribute values that describe the relationship
definition itself, such as when it was created, who "owns" it, and so on.
You can also use the attribute values of a relationship to describe one
of the entities involved in the relationship. Attribute values can
provide a description of the entity in a particular context.
Table 3-3 shows some sample relationships of the type FORM contains
ELEMENT. Each "row" in the table represents a relationship involving two
entities, shown in the first two columns. The other columns contain
values for the attributes SCOPE-OWNER and FIELD-ENHANCEMENT. The
SCOPE-OWNER attribute applies to the relationship definition itself (who
owns it in the dictionary). The FIELD-ENHANCEMENT value refers to an
object.
Table 3-3. Relationships of type FORM contains ELEMENT
--------------------------------------------------------------------------------------------------
| | | | |
| FORM | ELEMENT | SCOPE-OWNER | FIELD-ENHANCEMENT |
| | | | |
--------------------------------------------------------------------------------------------------
| | | | |
| CUSTOMERS | LAST_NAME | DA | N |
| SALES | PURCHASE_PRICE | RON | HI |
| BURGERS | PURCHASE_PRICE | KELLY | HU |
| CHEESE_CODES | NAME | SAM | B |
| | | | |
--------------------------------------------------------------------------------------------------
N-Ary Relationships
System Dictionary allows relationships that involve up to six entities.
Relationships involving more than two entities are called N-ary
relationships.
An example of an N-ary relationship type is the core set type
IMAGE-DATASET ELEMENT ELEMENT IMAGE-DATASET IMAGE-DATABASE chains. This
relationship type defines an IMAGE data base chain by including the
detail data set, search item, sort item, master set, and data base in a
single relationship.
An N-ary relationship allows you to define multiple relationships in a
single definition. It also prevents part of the definition from being
left out. You cannot create an N-ary relationship unless you specify all
the entities. If it is necessary to omit one of the entities in an N-ary
relationship, you may use a slash (/) to indicate a null entity.
Creating and Accessing Relationships
You can create, delete, modify, and retrieve relationships. To create,
delete, or modify a relationship, the dictionary must be open in shared
or exclusive update mode. To retrieve a relationship, the read and read
only mode are sufficient.
When you create a relationship, you must specify a list of already
existing entities that will be involved in the relationship. You must
specify the relationship type as an ordered list of entity types
corresponding to the entity list. If the entity type list you specify is
not unique in the dictionary (for example, ELEMENT ELEMENT), you must
qualify the entity type list by relationship class (for example,
contains). When you create a relationship, you can specify a
list of attributes and their values. The list may contain any
attribute associated with the entity type, plus any alias attribute.
Variable-length attribute values are to be assigned later, after you
create the relationship.
To retrieve a relationship, the dictionary can be open in read, read
only, shared update, or exclusive update mode. You retrieve a
relationship to determine whether it exists, or to retrieve one or
more of its attribute values. You can request a value for any
attribute associated with the relationship type, or for any alias or
variable-length attribute.
When the dictionary is open in read, read only, shared update, or
exclusive update mode, System Dictionary allows you to retrieve
dictionary structure information that is needed to create, delete,
modify, and retrieve relationships. You can retrieve a list of
relationship types and relationship classes available in the dictionary.
Also, you can retrieve the list of attributes associated with a
relationship type, and a list of the alias and variable-length attributes
since you can assign these to any relationship.
Detailed instructions for creating, deleting, modifying, and retrieving
relationships are located in other HP System Dictionary/XL manuals.
Refer to the HP System Dictionary/XL SDMAIN Reference Manual
(32256-90001) for instructions to do these operations with the System
Dictionary user interface, or to the HP System Dictionary/XL Intrinsics
Reference Manual (32256-90002), if using the System Dictionary
intrinsics.
