PHASES
Used to determine when specified processing specifications are executed.
Syntax
phaseheader
[statement]
.
.
.
[statement]
Parameters
phaseheader One of the following headings. The phase headings must
be specified in the order shown:
CONFIG Perform the following configuration
during form presentation.
INIT Perform the following statements during
initialization (VINITFORM).
FIELD Perform the following statements during
the field edit phase (VFIELDEDITS).
FINISH Perform the following statements during
the finish phase (VFINISHFORM).
Configuration processing specifications must always be
preceded by the phase header CONFIG. The INIT header can
be omitted if the initialization processing
specifications are followed by the FIELD phase header
and field edit processing specifications. The
FIELD phase header can be omitted if there are
no configuration or initialization processing
specifications. The FINISH header must always be
specified to indicate that a statement is to be executed
in that phase.
statement A processing statement to be executed in the specified
phase.
Discussion
During the configuration phase, local edits are loaded to terminals that
support the local edit feature (see Appendix G), and the output device
and error lights to be lit are identified for data capture devices.
During the initialization phase, all fields in the form are initialized;
during the field edit phase, all fields (in screen order left to right,
top to bottom) are validated and edited. An application usually requests
execution of the finish phase only when all fields have passed the edit
tests of the field phase. Finish statements apply to the entire form.
(Refer to Figure 4-4 for an illustration of the flow of form execution
under ENTRY control.)
You can specify that a statement be executed during a particular phase
with the phase specification statements. It is important to note that
while specifications are entered field by field, execution of the phases
applies to the entire form. If you omit these phase headings altogether,
all statements are executed in the field edit phase.
Example
CONFIG
LOCALEDITS alphabetic
LIGHT B
DEVICE printer
INIT
SET TO 20.00
FIELD
IN 20:200
IF IN 100:200 THEN JUSTIFY RIGHT
FINISH
SET TO SAVE_FIELD_1
If you want statements to be executed in a particular phase, you must
precede the statements by the appropriate phase headings. Phase headings
must be specified in the order shown above.
Configuration Phase
If you use the configuration phase, the CONFIG statement must be the
first statement in the processing specification area on the field menu.
The CONFIG statement is processed only for the field in which it appears.
The commands that can be used in the configuration phase are: DEVICE,
LIGHT and LOCALEDITS. (Refer to the "Processing Specifications for
Configuration" earlier in this section.)
Initialization Phase
The initialization phase occurs when VINITFORM is called. The processing
that precedes the display of the form is usually performed in this phase.
For each field in the form, the field is first initialized to any value
specified in the Initial Values box of the Field Menu. (By default, all
fields are set to $EMPTY, all blanks). If any initialization statements
are included in the field processing specifications, these are executed
next. This process continues until all fields in the form are
initialized.
If the form being initialized is a child or sibling to the previous form,
data from the previous form is transferred to this form (with conversion
if necessary) before initializations occur. Refer to "Form Families" in
Section 3 for more information.
A SET TO source statement may be used to initialize field values.
![[]](../../pic3k/M000076/F04043c50.gif)

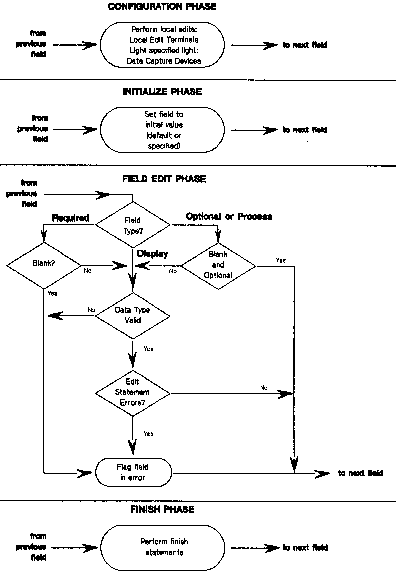

Figure 4-4. Flow of Phase Execution for ENTRY
Field Edit Phase
The field edit phase occurs when VFIELDEDITS is called. The field edit
phase is usually requested by the application after the form is displayed
on the screen, and the user has input data. During this phase, the
entered data is checked according to the field attributes and any
processing specifications entered by the designer. The Edit statements
can be executed only in the field edit phase.
Each field in turn is examined. The first action is to check the field
type. If it is optional and the field is blank, the rest of the field
edit phase for this field is skipped. If the field is required, it must
contain a nonblank value. If it has a value, the data is checked to see
if it conforms to the field's data type. If it does, then any field
processing statements are executed in the order they were entered.
Edit failures detected in this phase cause the field to be flagged in
error so the user can be informed. All further processing on this field
is stopped when an error is detected, and control passes to the next
field.
ENTRY loops through all processing statements in the field edit phase
until all errors have been corrected by the user.
Finish Phase
The finish phase occurs when VFINISHFORM is called. The finish phase
usually is requested by the application after all data has been entered
and validated for the entire form. The ENTRY program executes statements
in this phase only when no errors are detected after ENTER is pressed.
Finish statements direct irreversible processing during which the global
environment can be altered.
Under ENTRY control, any processing performed by the preceding two phases
can be undone prior to the FINISH phase. For instance, if the user
presses REFRESH, the initial values replace any that were entered. In
the finish phase, such changes can no longer be made.
Under ENTRY control, the batch file is written as soon as the finish
phase is complete. The assumption is that all fields have been tested
and corrected; fields with errors are not enhanced in the finish phase.
