STATEMENT SYNTAX
The processing specifications consist of statement names followed by
parameters. The description of each statement uses the conventions
defined at the beginning of the manual. In order to understand the
notation used in the statement formats in this section, you should review
these conventions.
Multiple statements can be placed on the same line by following the last
parameter of the statement by a blank and the next statement. If you
want, you can separate statements on the same line with an optional
semicolon (;). For example:
MINLEN 5 GT 1000 LT 2500 3 statements without separator
MINLEN 5; GT 1000; LT 2500 3 statements separated by ;
Statements may begin anywhere on the line, except for nested IF
statements where indentation is significant. Multiple blanks are ignored
within a line, except at the beginning of a line in a nested IF
statement.
Comments
Comments may be included in the text by preceding the comment with a
backslash (\). Anything typed between the backslash and the end of the
line is ignored. For example:
![[]](../../pic3k/M000076/F0401A3c50.gif)
Continuing Lines
Statements that are not completed before the first backslash or the end
of the line can be continued anywhere on the next line. A continuation
character, the ampersand (&), is used only when a string literal must be
continued on the next line. The ampersand concatenates two or more
string literals to form one string. For example:
EQ "ABCDEF"& \This field must be the string of
"UVWXYZ" \the uppercase letters ABCDEFUVWXYZ.
Custom Error Messages
Whenever a field edit statement detects an error at run-time, the
application can call the appropriate VPLUS/V intrinsics to have an error
message (provided by VPLUS/V) issued and displayed in the window line,
such as is done with ENTRY. You may choose to write a custom message to
be issued when a field fails a particular edit specification. To do
this, you specify the custom message in quotes immediately following the
statement to which it applies. Figure 4-2 illustrates a Field Menu in
which the processing specifications contain custom error messages. When
and if the statement causes a field to fail, the custom message is
displayed instead of a VPLUS/V error message. For example:
MATCH udddd "Field has wrong format for Product Number"
![[]](../../pic3k/M000076/F04023c50.gif)

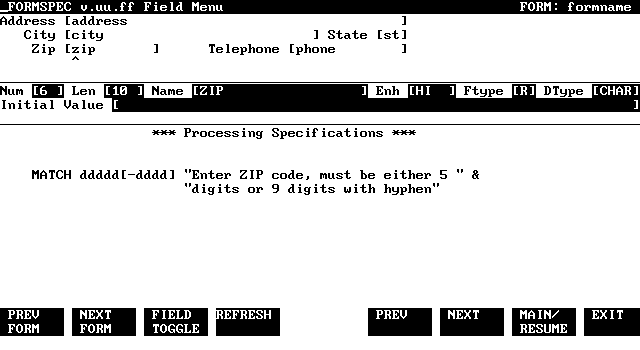

Figure 4-2. Field Menu With Custom Error Messages
Checking Data Entered
The field attributes for the field determine the first checks made on the
data in the field. For example, if the field is required (FType=R), it
is checked to be sure that the user has entered a value in the field.
Editing is performed according to the data type. For example, if the
data type is DIG, then the field is checked to be sure that only
the digits 0-9 were entered in the field. Next, the processing
specifications are tested in the order they are specified. As an
example, consider the specifications in Figure 4-2 . After making the
checks based on the field attributes, data entered in the field is tested
to be sure that at least 5 digits were entered (MATCH ddddd), and
optionally the value is checked for a hyphen and 4 more digits ([ - dddd
]). In all cases, the checks are performed by VPLUS/V when the
application calls the appropriate VPLUS/V intrinsics, as described in
Section 6.
Table 4-1 is a summary of all the statements that may be entered in the
Processing Specifications area of the Field Menu. Each of these
statements is fully described later in this section.
Table 4-1. Summary of Processing Statements
CONFIGuration statements
__________________________________________________________________________________
| |
| [ALPHANUMERIC] |
| [CONSTANT] |
| [IMP_DEC] |
| [IMP_DEC_FILL] [JUSTIFY] ... |
| LOCALEDITS [INTEGER] [MUST_FILL] |
| [INTEGER_FILL] [REQUIRED] [DEC_DIGITS n] |
| [SIGN_DEC] |
| [SIGN_DEC_FILL] [DEC_TYPE-EUR] |
| [UNRESTRICTED] [DEC_TYPE_US] [TRANSMIT_ONLY]|
| [UPSHIFT] |
__________________________________________________________________________________
________________________________________________________________________
| |
| |
| {@ } |
| {A } |
|LIGHT {...}... |
| {O } |
| {P } |
________________________________________________________________________
________________________________________________________________________
| |
| |
| {PRINTER } |
| {KEYBOARD } |
| {MAGSTRIPE } |
| {TYPEV } |
| {MULTIFUNCTION READER } |
| { } |
| { [CAD MARKS ]} |
| { [NONE HOLES ]} |
| {MFR [ [CUT ]]} |
|DEVICE { [CAD HOLES [NOCUT]]}... |
| { [LARGECHAR] } |
| {DISPLAY [STDCHAR ] } |
| { } |
| { [UPC] } |
| { [I25] } |
| { [I39] } |
| {BARCODE [READER] [MAT] } |
| { [EAN] } |
| { [IVL] } |
________________________________________________________________________
Edit Statements
________________________________________________________________________
| |
| |
| {GT} |
| {LT} |
| {GE} |
|MINLEN value ["msg"] {LE} value ["msg"] |
| {EQ} |
| {NE} |
| |
|{IN }{value[,value] } |
|{NIN}{lowvalue:highvalue[,lowvalue:highvalue]...} ["msg"] |
| {value[,lowvalue:highvalue]... } |
| |
| |
| {10} |
|MATCH pattern ["msg"] CDIGIT {11} ["msg"] |
________________________________________________________________________
Formatting Statements
________________________________________________________________________
| |
| |
| {TRAILING} {LEFT } |
|STRIP {LEADING } "character JUSTIFY {RIGHT } |
| {ALL } {CENTER} |
| |
| |
| {LEADING } |
|FILL {TRAILING} "character" UPSHIFT |
________________________________________________________________________
SET Statements
________________________________________________________________________
| |
| |
| { {value } } |
| {TO {index OF value[,value]...} } |
|SET { } |
| {{field } [ {value }]} |
| {{save field} [TO {index OF value[,value]...}]} |
________________________________________________________________________
CHANGE Statement
________________________________________________________________________
| |
| |
| { {NOREPEAT } } |
| {CFORM TO {REPEAT } } |
| { {REPEAT APPEND} } |
| { { ["formname" ]}} |
| { { [fieldname ]}} |
|CHANGE { {[CLEAR ] [index OF value[,value]...]}} |
| {NFORM TO{[APPEND ] [$RETURN ]}} |
| { {[FREEZE APPEND] [$HEAD ]}} |
| { { [$END ]}} |
| { { [$REFRESH ]}} |
________________________________________________________________________
Conditional Statement
________________________________________________________________________
| |
| |
|IF [value] editstatement THEN [statement]... [statement]... |
| |
|[ELSE [statement]...] |
|[[statement]... ] |
________________________________________________________________________
Control Statements
________________________________________________________________________
| |
| |
|FAIL ["msg"] STOP |
________________________________________________________________________
Operands
Whenever value is specified as an operand in a field processing
statement, a field name, constant, expression, or a save field name can
be used. If the operand is numeric, any of these can be combined into an
arithmetic expression whose result is used as the operand.
Another operand, index , is used to retrieve items from a list by an
index value. It must be enclosed within parentheses in edit statements;
in SET and CHANGE statements, it can be specified without the enclosing
parentheses.
Field. The name of any existing field within the same form can be
specified as a value operand. When a field name is specified, the value
in that field at run-time is used to check the current field.
A field name in an editing statement must describe a field of the same
data type (character, numeric, or date) as the current field.
Constant. Constants are divided into categories corresponding to the
three main data types: character, numeric and date. In addition, there
are four system defined constants:
$EMPTY equivalent to all blanks; in comparison, $EMPTY is less
than any other value (any data type).
$LENGTH equivalent to the length of the field the last time the
form was compiled (numeric data types).
$STATE equivalent to a table of constants each of which is a
two-character upper or lowercase United States state or
territory code; refer to Appendix F for the codes
(character type; used only in table checks).
$TODAY equivalent to today's date in the form dd/dd/dd where
the order of month day year is determined by the field
type (date type only).
Character. Character constants are strings of any character enclosed in
single or double quotes.
For example:
"This is a constant."
'and this is, too!'
$EMPTY
$STATE
Numeric. Numeric constants are digit strings with an optional leading
sign and optional decimal point. Commas are not allowed in numeric
constants. If the constant has no decimal point, a decimal is assumed at
the right of the rightmost (least significant) digit. $EMPTY (all
blanks) can be used to indicate a numeric constant less than any
non-$EMPTY value, $LENGTH can be used to indicate the length of the
current field. The following examples Illustrate numeric constants:
.23
-123
5000
-3729
$EMPTY
$LENGTH
Date.. A date constant can be any legal date format, but it must be in
the order MDY. With Native Language Support, the date constant order
(e.g., mmddyy) will not be language dependent. For more information on
Native Language Support, see Section 8. To distinguish it from other
constants, a date constant must be delimited by exclamation points (!).
Note that the date constant in the order MDY is used to check date values
in any of the three legal orders: MDY, DMY, or YMD. A special date
constant $TODAY is equivalent to the date at execution time. Examples of
date constants are:
!MAY 30, 1986!
!12/24/86!
!NOVEMBER 7, 86!
$TODAY
$EMPTY
Arithmetic Expression
Any numeric constant, field, or save field can be combined into an
arithmetic expression. The expression is evaluated to generate a
constant that can be used to check a field or replace the value of a
field. The operators used to form an arithmetic expression are:
+ (add)
- (subtract)
* (multiply)
/ (divide)
% (percent of)
The operators determine the order of evaluation in the standard operator
hierarchy where + and - are evaluated after *, /, and %. Operators at
the same level are evaluated from left to right. Parentheses may be used
to further define the hierarchy. Expressions within parentheses are
evaluated first and, if parentheses are nested, the innermost are
evaluated first. The % in the expression a%b is equivalent to (a*.01)*b.
When $EMPTY is used in an arithmetic expression, the result is always
$EMPTY. Thus, $EMPTY with any operator and operand = $EMPTY. The
following examples illustrate arithmetic expressions:
F2 + 1 Add 1 to the value in field F2.
QUANTITY * Multiply value in QUANTITY by value in UNITPRICE.
UNITPRICE
TOTALCENTS/ Divide value in TOTALCENTS by 1,000.
1000
20% (TOTALPRICE Find 20 percent of the value resulting from subtracting
- TAX) TAX from TOTALPRICE.
$EMPTY + 20 The result is always $EMPTY, regardless of the operator
or other operand.
NOTE When the VPLUS/V intrinsics execute an arithmetic expression, they
expect each operand in the expression to have a value; if any
operand does not have a value, the result is null. It appears to
the user as if the expression had not been executed and no message
is issued.
Index Retrieve Operand
An index retrieve operand (enclosed within parentheses) can be used in
any edit statement where a constant, field, or expression is legal. An
index retrieve operand without enclosing parentheses can be used in SET
and CHANGE statements.
An index retrieve operand is specified in the format:
index OF element [,element]...
index is a numeric type field or save field, or a numeric
expression whose value is a positive integer. The index
value indicates which element is selected.
element is a constant, field, save field, or expression. Each
element in the list of elements separated by commas must
be the same type (character, numeric, or date).
When an operand of this type is specified, its effective value is
selected from a list of values according to its position in the list,
where the first element of the list is 1. First, the index expression is
evaluated, then this value is used to select a final value from the list.
For example:
EQ (N OF If the value of N is 1, the character string "ABC" is
"ABC","DEF", the selected operand: if the value of N is 4, the value
"GHI", FIELDX) of FIELDX is selected. If the value of N is negative,
zero, or greater than the number of elements, an error
message is returned. Note that the operand is enclosed
in parentheses because EQ is an edit statement.
SET TO F3 OF If the value of F3 is 1, the selected operand is the
F1,15,20, value of field F1; if F3 is 4, the selected operand is
25,35,40 25. Parentheses are not required in a SET statement.
CHANGE NFORM TO X may be a value between 1 and 4. If its value is 4,
X OF "FORMA", the field name OPSELECT is chosen. The value of
"FORMB", OPSELECT must be type character to conform to the other
"FORMC", elements in the list, and to make sense it should
OPSELECT contain a form name. No parentheses are needed in a
CHANGE statement.
If an index has a value beyond the number of elements in the list or is
$EMPTY, an error is returned.
