DATA CAPTURE DEVICE SPECIFICATIONS MENU

If you select the data capture devices on the Terminal/Language Selection
Menu, the following message will appear at the bottom of the Globals
Menu:

     Press NEXT to select HP 3075/6 device specifications

Press NEXT to display the Data Capture (3075/6) Device Specifications
Menu, as shown in Figure 3-27.  On this menu you can specify how you want
messages longer than 24 (or 32 for the HP 3081A) characters to be
presented on singleline display.  In addition, you can specify which
keyboard light is to be lit if an error is detected, and the device
configuration for the Multifunction and Bar code readers if they were
specified as valid input devices.

[]

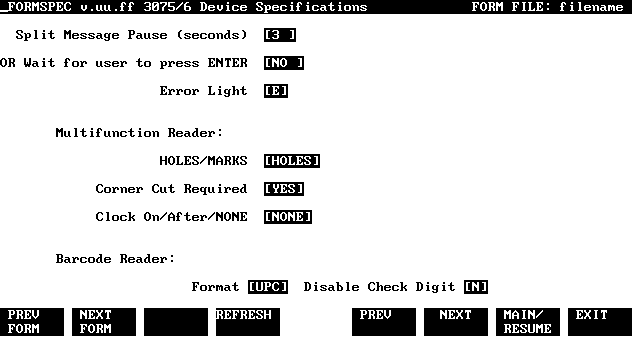

Figure 3-27. Data Capture Device Specifications Menu Fields Split Message You may specify the number of seconds between screen Pause (seconds) presentations for messages longer than 24 (or 32) characters. Enter a value between 1 and 99 in this box and a NO in the Wait for ENTER box. User and VPLUS/V's messages will be broken so as not to display part of a word. This field does not apply to Mini-CRT display. Default 3 (seconds) OR Wait for You may also specify that screen presentations for user to press messages longer than 24 (or 32) characters be displayed ENTER after ENTER is pressed. Enter a YES in this box and a zero (0) in the Split Message Pause box. This field does not apply to Mini-CRT display. Default NO Error Light You may specify which keyboard light is to be lit if an error is detected on the form by the application or by VPLUS/V. This light will remain lit during the re-presentation of the form. You may specify any one of the following: @, A through P. Default E Multifunction If you select the Multifunction Reader as an input Reader: device, you can specify how it should be configured to accept valid card and badge input. The following options are available: HOLES/MARKS The card or badge will have holes or will be mark sensed. Default HOLES Corner Cut The card or badge must be presented Required with the corner in accordance with the diagram on the terminal. Default YES Clock On/After The card or badge will have clock marks /NONE after each column of data, or no clock marks. Valid input is CAD (clock after data) or NONE (no clocking). Default NONE Invalid combinations of the above are Holes with Clock On data and Marks with NONE. Bar Code Reader If you select the Bar Code Reader as an input device, you can specify how it should be configured. The following options are available: Format You can specify which bar code format will be read. Choose one of the following: UPC--Universal Product Code I25--Industrial 2 out of 5 MAT--INTERMEC 2 out of 5 MATRIX code 139--INTERMEC code 39 alphanumeric bar code * EAN--European Article Numbering ILV--Interleaved 2 out of 5 Default UPC *code I39 is a registered trademark of Interface Mechanism, Inc. Disable Check When you specify the bar code reader as Digit an input device, VPLUS/V configures the device to require check digits. You can change this by specifying yes (Y) in this field. Default N Example of how a typical form layout will took displayed on the data capture devices:
[]

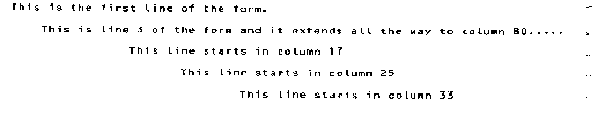

Figure 3-28. Form Layout in FORMSPEC
[]

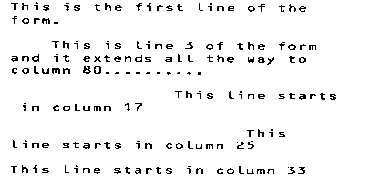

Figure 3-29. Displayed on Standard Character Set Mini-CRT Screen
[]
Figure 3-30. Displayed on 32 Character One Line Alpha Display Screen
[]

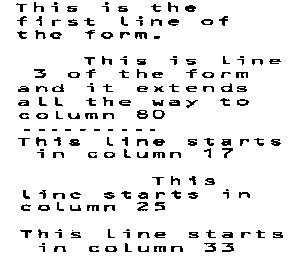

Figure 3-31. Displayed on Large Character Mini-CRT Screen
