HP Data Entry and Forms Management System (VPLUS/V)

GLOBAL FUNCTION KEY LABELS MENU

This menu is used to specify new function key labels which will appear
when an application is executed.  Labels you specify replace original
labels provided by VPLUS/V.

Each label consists of two lines of eight characters each.  To specify a
label, enter the first line in the first field and the second line of the
label in the second field in the menu.  The color pairs fields allow you
to specify a number, (1 - 8) to indicate a color for each function key;
refer to Table 3-7 for the correct color to number mapping.

For example, to change the      change the field for Key 1 as
label for Key 1 to read:        shown:
      ORDER
      NUMBER                Function Key 1 [ORDER] [NUMBER]

If the labels are to be Global, they will be displayed for all forms that
do not have Local labels defined.

In the case of a frozen form with another form appended to it, the labels
displayed will be those for the appended form.  If the appended form has
no Local labels, the file's Global labels will be used.

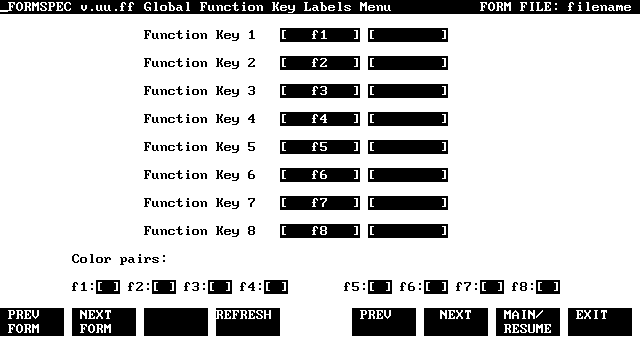

          Figure 3-24.  Global Function Key Labels Menu
