HP Data Entry and Forms Management System (VPLUS/V)

FORM FUNCTION KEY LABELS MENU

This menu is used to specify function key labels that will be displayed
along with the form.  Labels you specify replace original labels provided
by VPLUS/V. Each label consists of two lines of eight characters each, To
specify a label, enter the first line in the first field and the second
line of the label in the second field in the menu.  Both lines can be
specified on this menu.  The color pairs fields allow you to specify a
number, (1 - 8) to indicate a color for each function key; refer to Table
3-7 for the correct color to number mapping.

For example, to change the     change the field for Key 1 as
label for Key 1 to read:       shown:
      ORDER
      NUMBER               Function Key 1 [ORDER] [NUMBER]

If the labels are to be Local, they will be displayed only while that
form is on the screen.  If the next form does not have Local labels, the
file's Global labels will be displayed.  In the case of a frozen form
with another form appended to it, the labels displayed will be those for
the appended form.  If the appended form has no Local labels, the file's
Global labels will be used.  The function key labels can be updated using
FORMSPEC in batch mode.  (See Section 7 for more information.)

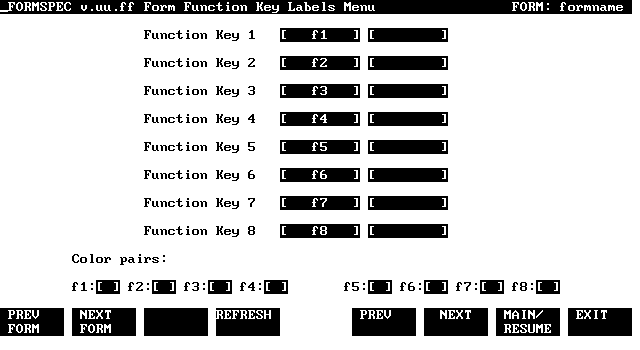

          Figure 3-20.  Form Function Key Labels Menu
