Identifiers
An identifier is a sequence of characters that represents an entity such
as a function or a data object.
Syntax
identifier ::= nondigit
identifier nondigit
identifier digit
nondigit ::= any character from the set:
_ a b c d e f g h i j k l m n o p
q r s t u v w x y z A B C D E F G
H I J K L M N O P Q R S T U V W X
Y Z
digit ::= any character from the set:
0 1 2 3 4 5 6 7 8 9
[REV BEG]
dollar-sign ::= the $ character[REV END]
Description
Identifiers must start with a nonnumeric character followed by a sequence
of digits or nonnumeric characters. Internal and external names may have
up to 255 significant characters.
Identifiers are case sensitive. The compiler considers uppercase and
lowercase characters to be different. For example, the identifier CAT is
different from the identifier cat. This is true for external as well as
internal names.
[REV BEG]
An HP extension to the language non-ANSI mode allows $ as a valid
character in an identifier as long as it is not the first character.[REV
END]
The following are examples of legal
and illegal identifiers:
Legal
Sub_Total
X
aBc
Else
do_123
Illegal
3xyz First character is a digit
const Conflict with a reserved word
#note First character not alphabetic or _
Num'2 Contains an illegal character
All identifiers that begin with the underscore (_) character are reserved
for system use. If you define identifiers that begin with an underscore,
the compiler may interpret them as internal system names. The resulting
behavior is undefined.
Finally, identifiers cannot have the same spelling as reserved words.
For example, int cannot be used as an identifier because it is a reserved
word. INT is a valid identifier because it has different case letters.
Identifier Scope
The scope of an identifier is the region of the program in which the
identifier has meaning. There are four kinds of scope:
1. File Scope--Identifiers declared outside of any block or list of
parameters have scope from their declaration point until the end
of the translation unit.
2. Function Prototype Scope--If the identifier is part of the
parameter list in a function declaration, then it is visible only
inside the function declarator. This scope ends with the function
prototype.
3. Block Scope--Identifiers declared inside a block or in the list of
parameter declarations in a function definition have scope from
their declaration point until the end of the associated block.
4. Function Scope--Statement labels have scope over the entire
function in which they are defined. Labels cannot be referenced
outside of the function in which they are defined. Labels do not
follow the block scope rules. In particular, goto statements can
reference labels that are defined inside iteration statements.
Label names must be unique within a function.
A preprocessor macro is visible from the #define directive that declares
it until either the end of the translation unit or an #undef directive
that undefines the macro.
Identifier Linkage
An identifier is bound to a physical object by the context of its use.
The same identifier can be bound to several different objects at
different places in the same program. This apparent ambiguity is
resolved through the use of scope and name spaces. The term name spaces
refers to various categories of identifiers in C (see "Name Spaces" later
in this chapter for more information).
Similarly, an identifier declared in different scopes or in the same
scope more than once can be made to refer to the same object or function
by a process called linkage. There are three kinds of linkage:
1. Internal--Within a single translation unit, each instance of an
identifier with internal linkage denotes the same object or
function.
2. External--Within all the translation units and libraries that
constitute an entire program, each instance of a particular
identifier with external linkage denotes the same object or
function.
3. None--Identifiers with no linkage denote unique entities.
If an identifier is declared at file scope using the storage-class
specifier static, it has internal linkage.
If an identifier is declared using the storage-class specifier extern, it
has the same linkage as any visible declaration of the identifier with
file scope. If there is no visible declaration with file scope, the
identifier has external linkage.
If the declaration of an identifier for a function has no storage-class
specifier, its linkage is determined exactly as if it were declared with
the storage-class specifier extern. If the declaration of an identifier
for an object has file scope and no storage-class specifier, its linkage
is external.
The following identifiers have no linkage:
* An identifier declared to be anything other than an object or a
function.
* An identifier declared to be a function parameter.
* A block scope identifier for an object declared without the
storage-class specifier extern.
For example:
extern int i; /* External linkage */
static float f; /* Internal linkage */
struct Q { int z; }; /* Q and z both have no linkage */
static int func() /* Internal linkage */
{
extern int temp; /* External linkage */
static char c; /* No linkage */
int j; /* No linkage */
extern float f; /* Internal linkage; refers to */
/* float f at file scope */
}
Two identifiers that have the same scope and share the same name space
cannot be spelled the same way. Two identifiers that are not in the same
scope or same name space can have the same spelling and will bind to two
different physical objects. For example, a formal parameter to a
function may have the same name as a structure tag in the same function.
This is because the two identifiers are not in the same name space.
If one identifier is defined in a block and another is defined in a
nested (subordinate) block, both can have the same spelling.
For
example:
{
int i; <---A
.
. <---B
.
{
float i; <---C
. <---D
.
.
} <---E
.
. <---F
.
} <---G
In the example above, the identifier i is bound to two physically
different objects. One object is an integer and the other is a
floating-point number. Both objects, in this case, have block scope. At
location A, identifier i is declared. Its scope continues until the end
of the block in which it is defined (point G). References to i at
location B refer to an integer object.
At point C, another identifier is declared. The previous declaration for
i is hidden by the new declaration until the end of the block in which
the new i is declared. References to the identifier i result in
references to a floating-point number (point D). At the end of the second
block (point E), the floating-point declaration of i ends. The previous
declaration of i again becomes visible, and references to identifier i at
point F reference an int.
Storage Duration
Identifiers that represent variables have a real existence at runtime,
unlike identifiers that represent abstractions like typedef names or
structure tags. The duration of an object's existence is the period of
time in which the object has storage allocated for it. There are two
different durations for C objects:
1. Static--An object whose identifier is declared with external or
internal linkage, or with the storage-class specifier static, has
static storage duration. Objects with static storage duration
have storage allocated to them when the program begins execution.
The storage remains allocated until the program terminates.
2. Automatic--An object whose identifier is declared with no linkage,
and without the storage-class specifier static, has automatic
storage duration. Objects with automatic storage duration are
allocated when entering a function and deallocated on exit from a
function. If you do not explicitly initialize such an object, its
contents when allocated will be indeterminate. Further, if a
block that declares an initialized automatic duration object is
not entered through the top of the block, the object will not be
initialized.
Name Spaces
In any given scope, you can use an identifier for only one purpose. An
exception to this rule is caused by separate name spaces. Different name
spaces allow the same identifier to be overloaded within the same scope.
This is to say that, in some cases, the compiler can determine from the
context of use which identifier is being referred to. For example, an
identifier can be both a variable name and a structure tag.
Four different name spaces are used in C:
1. Labels--The definition of a label is always followed by a colon (
: ). A label is only referenced as the object of a goto
statement. Labels, therefore, can have the same spelling as any
nonlabel identifier.
2. Tags--Tags are part of structure, union, and enumeration
declarations. All tags for these constructs share the same name
space (even though a preceding struct, union or enum keyword could
clarify their use). Tags can have the same spelling as any
non-tag identifier.
3. Members--Each structure or union has its own name space for
members. Two different structures can have members with exactly
the same names. Members are therefore tightly bound to their
defining structure. For example, a pointer to structure of type A
cannot reference members from a structure of type B. (You may use
unions or a cast to accomplish this.)
4. Other names--All other names are in the same name space, including
variables, functions, typedef names, and enumeration constants.
Conceptually, the macro prepass occurs before the compilation of the
translation unit. As a result, macro names are independent from all
other names. Use of macro names as ordinary identifiers can cause
unwanted substitutions.
Types
The type of an identifier defines how the identifier can be used. The
type defines a set of values and operations that can be performed on
these values. There are three major category of types in C--object type,
function type, and incomplete type.

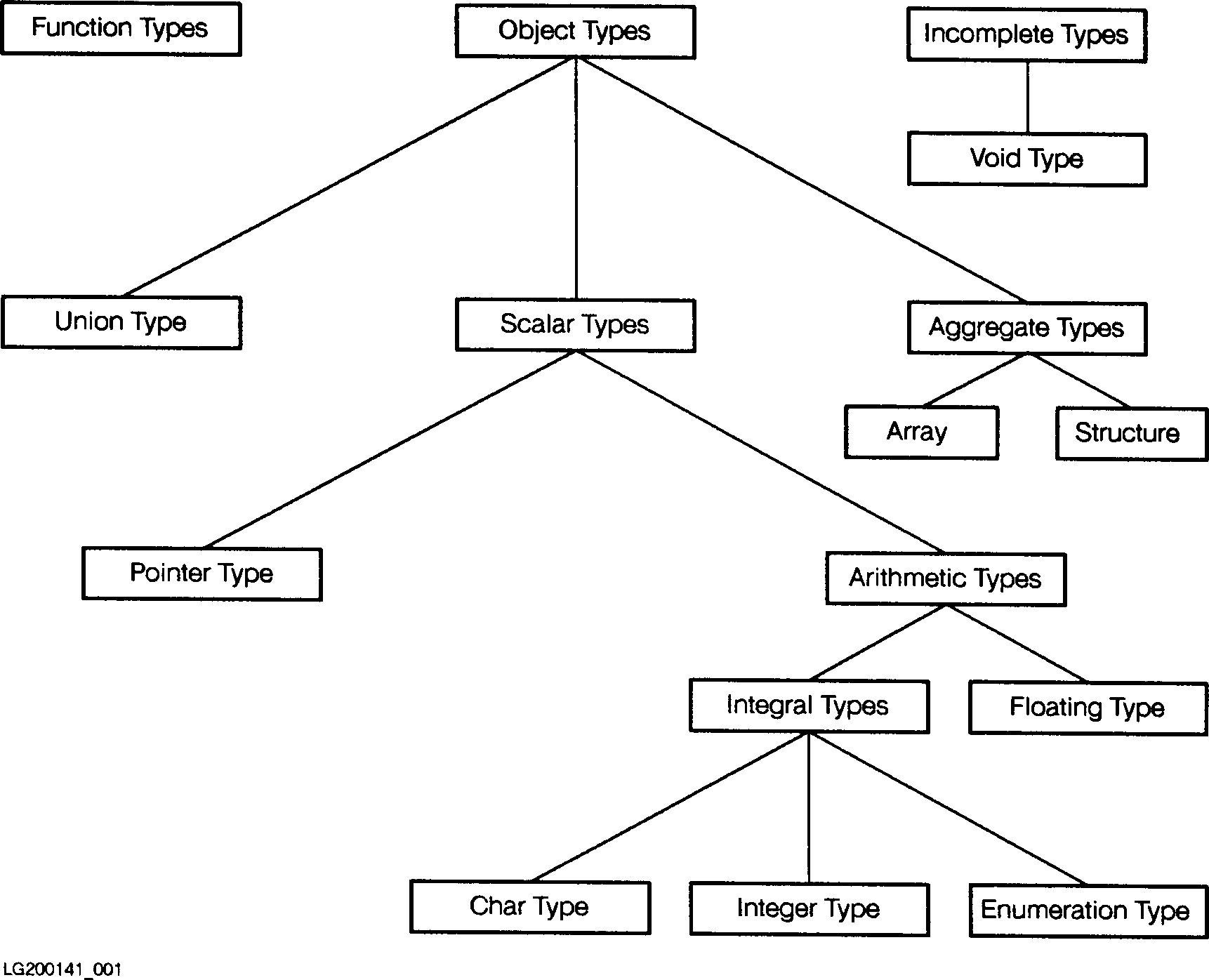

I. Object Type
There are 3 object types--scalar, aggregate, and union. These are
further subdivided (see figure 2-1).
1. Scalar--These types are all objects that the computer can
directly manipulate. Scalar types include pointers,
numeric objects, and enumeration types.
a. Pointer--These types include pointers to objects and
functions.
b. Arithmetic--These types include floating and
integral types.
A. Floating: The floating types include the
following:
Float--A 32-bit floating point number.
Double--A 64-bit double precision floating
point number.
Long double--A 128-bit quad precision
floating point number.
B. Integral: The integral types include all of
the integer types that the computer supports.
This includes type char, signed and unsigned
integer types, and the enumerated types.
Char--An object of char type is one that is
large enough to store an ASCII character.
Internally, a char is a signed integer.
Integer--Integers can be short or long; they
are normally signed, but can be made unsigned
by using the keyword unsigned with the type.
In C, a computation involving unsigned
operands can never overflow; high-order bits
that do not fit in the result field are
simply discarded without warning. A short
int is a 16-bit integer. A long int (or int)
is a 32-bit integer. Integer types include
signed char and unsigned char (but not
"plain" char).
Enumerated--Enumerated types are explicitly
listed by the programmer; they name specified
integer constant values. The enumerated type
color might, for example, define red, blue,
and green. An object of type enum color
could then have the value red, blue, or
green.
2. Aggregate--Aggregate types are types that are composed of
other types. With some restrictions, aggregate types can
be composed of members of all of the other types including
(recursively) aggregate types. Aggregate types include:
a. Structures--Structures are collections of
heterogeneous objects. They are similar to Pascal
records and are useful for defining special-purpose
data types.
b. Arrays--Arrays are collections of homogeneous
objects. C arrays can be multidimensional with
conceptually no limit on the number of dimensions.
3. Unions--Unions, like structures, can hold different types
of objects. However, all members of a union are
"overlaid"; that is, they begin at the same location in
memory. This means that the union can contain only one of
the objects at any given time. Unions are useful for
manipulating a variety of data within the same memory
location.
II. Function Type
A function type specifies the type of the object that a function
returns. A function that returns an object of type T can be
referred to as a "function returning T," or simply, a T function.
III. Incomplete Type
The void type is an incomplete type. It comprises an empty set of
values. Only pointers and functions can have void type. A
function that returns void is a function that returns nothing. A
pointer to void establishes a generic pointer.
Figure 2-1 illustrates the C types.
![[]](../../pic3k/M011986/FFN23c50.gif)
Figure 2-1. C Types
