HP Pascal/iX Programmer's Guide

Arrays

Arrays are stored in row-major order.  This means that an array is stored
a row at a time, rather than a column at a time (column-major order).

Example

     VAR
        a : ARRAY [1..2,1..3] OF char;

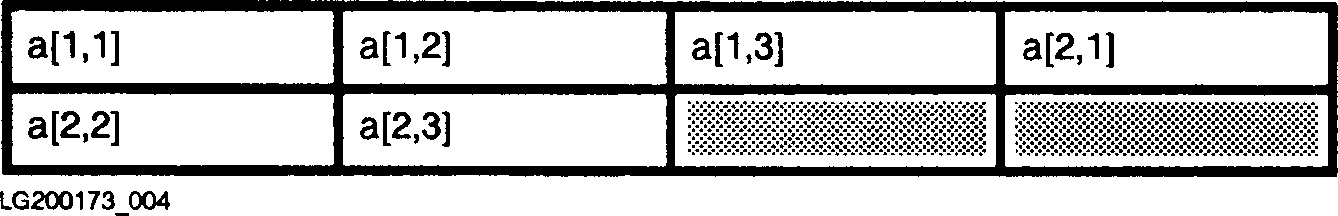

Row-major order:

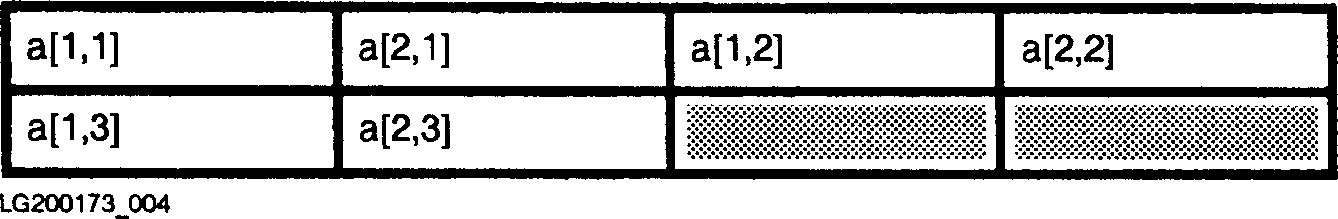

Column-major order:




The HP Pascal packing algorithm uses this formula to allocate an array:

     number_of_elements * space_for_one_element

The space_for_one_element depends upon the array element type and whether
the array is unpacked, packed, or crunched.  The same factors determine
element alignment.  See the tables indicated below:

If the array is:      See:                  In the section:

Unpacked              Table 5-1          "Unpacked Variables"

Packed                Table 5-3          "Packed Arrays"

Crunched              Table 5-5          "Crunched Arrays and
                                            Records"
