HP ALLBASE/4GL Run-Time Administration Manual

System-Wide Specifications Menu

The system-wide specifications menu (the System Specs option on the main
menu screen) allows you to access the screens used to define various
system-wide values and defaults, terminal display attributes, and master
titles.

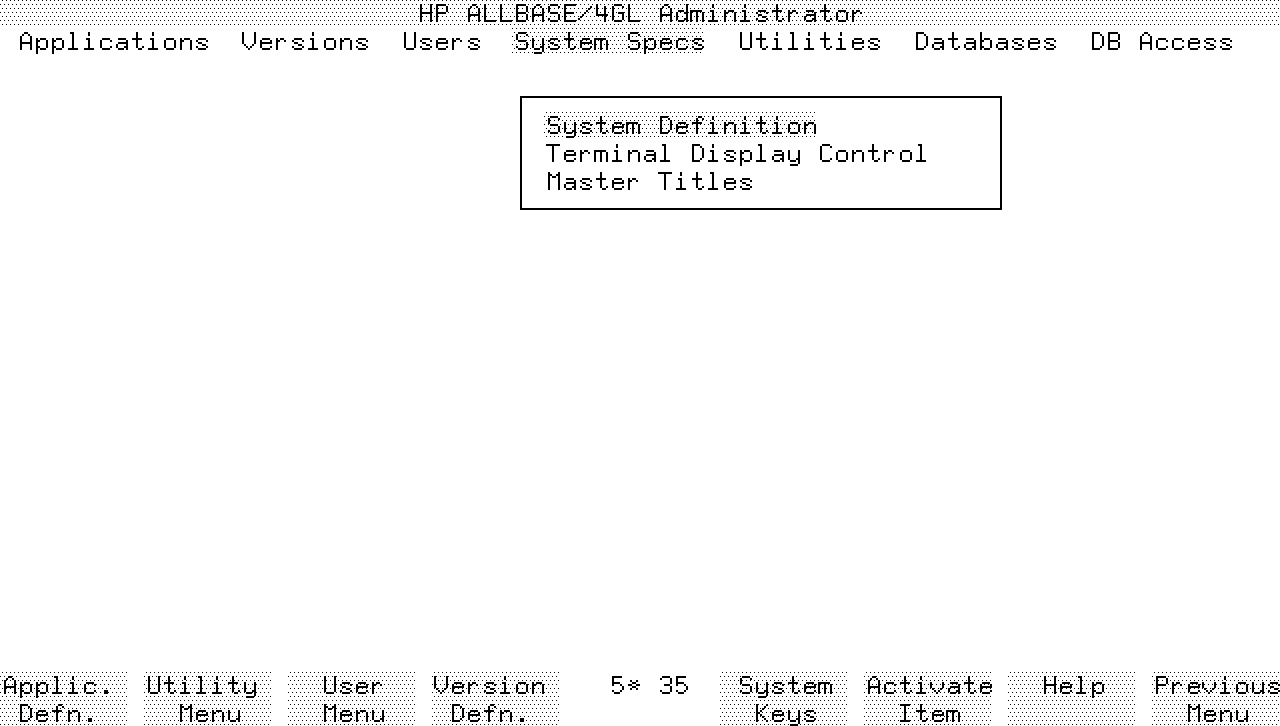

Screen Image




Menu Selections

System Definition.  This selection displays the system definition screen,
enabling you to define the system- wide values and defaults that apply
throughout HP ALLBASE/4GL.

Terminal Display Control.  This selection displays the terminal display
control screen.  This screen allows you to define the display
enhancements for all HP ALLBASE/4GL terminals on the system.

Master Titles.  This selection displays the master titles screen, which
allows you to define the text for system-wide titles.

Function Keys

f1       Applic.  Defn.    Cancels the current screen and displays the
        application definition screen.

f2       Utility Menu  Cancels the current screen and displays the
        administrator utilities menu.

f3       User Menu  Cancels the current screen and displays the end user
        validation menu.

f4       Version Defn.    Cancels the current screen and displays the
        version definition screen.
