HP ALLBASE/4GL Developer Administration Manual

System-Wide Specifications Menu

This menu appears when you choose the System Specs option on the main
menu.  The system-wide specifications menu allows you to access the
screens used to define various system-wide values and defaults, terminal
display attributes, command and communication area name synonyms, and
master titles.

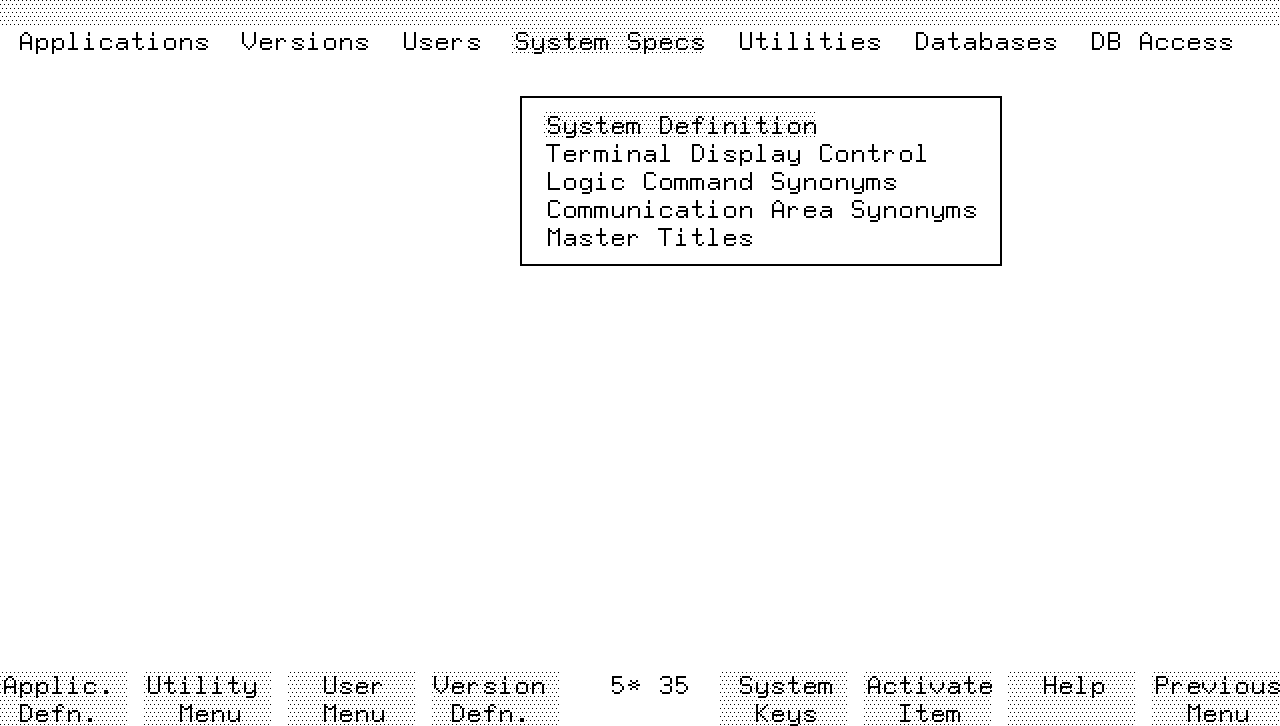

Screen Image




Menu Selections

System Definition.  This selection displays the system definition screen.
From this screen, you can define the system-wide values and defaults that
apply throughout HP ALLBASE/4GL.

Terminal Display Control.  This selection displays the terminal display
control screen.  This screen allows you to define the display
enhancements for all HP ALLBASE/4GL terminals on the system.

Logic Command Synonyms.  This selection displays the logic command
synonyms screen.  This screen allows you to define a synonym for each
logic command name.  It also allows you to disable particular commands
for your site.

Communication Area Synonyms.  This selection displays the communication
area synonyms screen.  This screen allows you to define a synonym for
each communication area name.

Master Titles.  This selection displays the master titles screen, which
allows you to define system-wide titles.

Function Keys

f1       Applic.Defn.    Cancels the current screen and displays the
        application definition screen.

f2       Utility Menu  Cancels the current screen and displays the
        utilities menu.

f3       User Menu  Cancels the current screen and displays the user
        validation menu.

f4       Version Defn.    Cancels the current screen and displays the
        version definition screen.
