Application #3
This application is in three parts. Each part is a sample job typical of
the work XSORT was designed to address in the field. The jobs use the
same files in a variety of ways for different sort requirements.
Each of the three sample jobs included is presented with an introduction,
XSORT specifications entered on the form, and a discussion of the
specifications.
A breakdown of the files to be sorted and their contents precedes the
discussion.
Files Records in File Fields Used in Sorts
---------------------------------------------------------------------------------------
Weekly Sales Detail sales records. Date, customer, product,
quantity.
Weekly Bookings Detail booking records. Date, customer, product,
quantity.
Sales and Bookings Summary sales and history Date, customer, product,
bookings. quantity.
Record Format for Weekly Sales File
Field Names Contents Record Positions
---------------------------------------------------------------------------------------
RECCDE Record "WS" 1 -2
INVNUM Invoice Number 3 -8
INVDAY Invoice data - day 9 -10
INVMON Invoice data - month 11 -12
INVYR Invoice data - year 13 -14
CUSTNO Customer number 15 -24
CUSTTY Customer type 25 -25
MRCHLN Merchandise line 26 -27
PRODCO Product code 28 -37
UNITS5 Sales units 38 -42
STACDE State code 43 -44
SLSTER Sales territory 45 -47
SLSNMl Sales number 48 -49
TRANCD Sales type 50 -50
Record Format for Weekly Bookings File
Field Names Contents Record Positions
---------------------------------------------------------------------------------------
RECCDE Record code "WB" 1 -2
CUSTNO Customer number 3 -12
CUSTTY Customer type 13 -13
ORDRNO Order number 14 -19
ORTYCD Order type 20 -20
MRCHLN Merchandise line 21 -22
PRODCO Product code 23 -32
STACDE State code 33 -34
SLSTER Sales territory 35 -36
SLSNM1 Salesman number 37 -39
CANIND Cancel indicator 40 -40
DATEMM Date - month 41 -42
DATEYY Date - year 43 -44
UNITS5 Units booked 45 -49
TRANCD Transaction code 50 -50
Record Format for the Sales History File
Field Names Contents Record Positions
---------------------------------------------------------------------------------------
RECCDE Record code "SB" 1 -2
CUSTNO Customer number 3 -12
STACDE State code 13 -14
SLSTER Sales territory 15 -16
SLSNM1 Salesman number 17 -19
PRODCD Product code 20 -29
CANIND Cancellation indicator 30 -30
GARTCD Garment type code 31 -31
DATEMM Date - month 32 -33
DATEYY Date - year 34 -35
UNITSB Units booked 36 -42
UNITSHP Units shipped 43 -49
UNTCAN Units cancelled 50 -56
UNTRET Units returned 57 -63
MRCHLN Merchandise line 64 -65
DOLBOK Booked value 66 -74
DOLSHP Shipped value 75 -83
DOLCAN Cancelled value 84 -92
DOLRET Returned value 93 -101
These are the files that were created specifically for the sample sorts.
They are the Weekly Sales file (WKSALE), the Weekly Bookings file
(WKBOOK), and the Sales History file (HISTUPD), in that order.
WB11111111119999999105ZZZ9999999CA0110110181123459
WB21111111128999998205XXX8888888TX0120210281234568
WB31111111137999997305LLL7777777AZ0130311280345677
WB41111111146999996405VVV6666666NV0140411180456786
WB51111111155999995505AAA5555555CA0150510181567895
WB61111111164999994605DDD4444444CA0160610281678904
WB71111111173999993709JJJ3333333CA81707N0281789013
WB81111111182999992809GGG2222222CA91808N0181890122
WB91111111191999991909ZZZ1111111CA11909I0181901231
WB01111111100999990009VVV0000000CA21101N0281123450
WB11111111119999999109ZZZ9999999CA31202N0281234561
WB21111111128999988209XXX8888888CA41303N1280345672
WS9000123102811111111111905ZZZ999999912345CA011019
WS9000113002812111111112805XXX888888823456CA011028
WS9000102901813111111113705LLL777777734567TX011037
WS9000092801814111111114605VVV666666645678AZ011046
WS9000082701815111111115505AAA555555556789CA011055
WS9000072601816111111116405DDD444444467890CA011064
WS9000062501815111111115309JJJ333333378901CA031073
WS9000052401818111111118209GGG222222289012CA031082
WS9000042301819111111119109ZZZ111111190123CA031091
WS9000032201810111111110009VVV000000001234CA031100
WS9000022101811211111112109ZZZ999999923456CA031111
WS9000012001812311111113209XXX888888834567CA031122
SB1111111111CA11101ZZZ9999999110281123456723456783456789123456705123456789
SB2111111112CA01202XXX8888888120281234567834567894567890567890109234567890
SB3111111113TX01303LLL7777777130281345678945678905678901678901209345678901
SB4111111114CA01404VVV6666666140181444444444444446444444444444709444444440
SB5111111115CA01505AAA5555555150281555555155555525555553555555405555555551
SB6111111116CA01606DDD4444444160281666666166666626666663666666405666666661
SB7111111117CA01707JJJ3333333970281777777177777727777773777777409777777771
SB8111111118CA01808GGG2222222980281888888188888828888883888888405888888881
SB9111111119CA02909ZZZ1111111290181999999199999929999993999999409999999991
SB0111111110CA04101VVV0000000100281000000100000020000003000000405000000001
SB1111111111CA01202ZZZ9999999710281111111111111121111113111111406111111111
SB2111111112AZ01303XXX8888888120281222222122222222222223222222409222222221
Sample Sort 1
This sort is used to select cancelled order records from the Weekly
Bookings file. It produces a Weekly Cancellation Analysis. The
"cancellation indicator" (in position 40), which is equal to 1, provides
selection criteria.
Output records will contain only those fields required for the report.
The output file will be sequenced by Customer Number (CUSTNO) and
subsequently by Product Code (PRODCO).

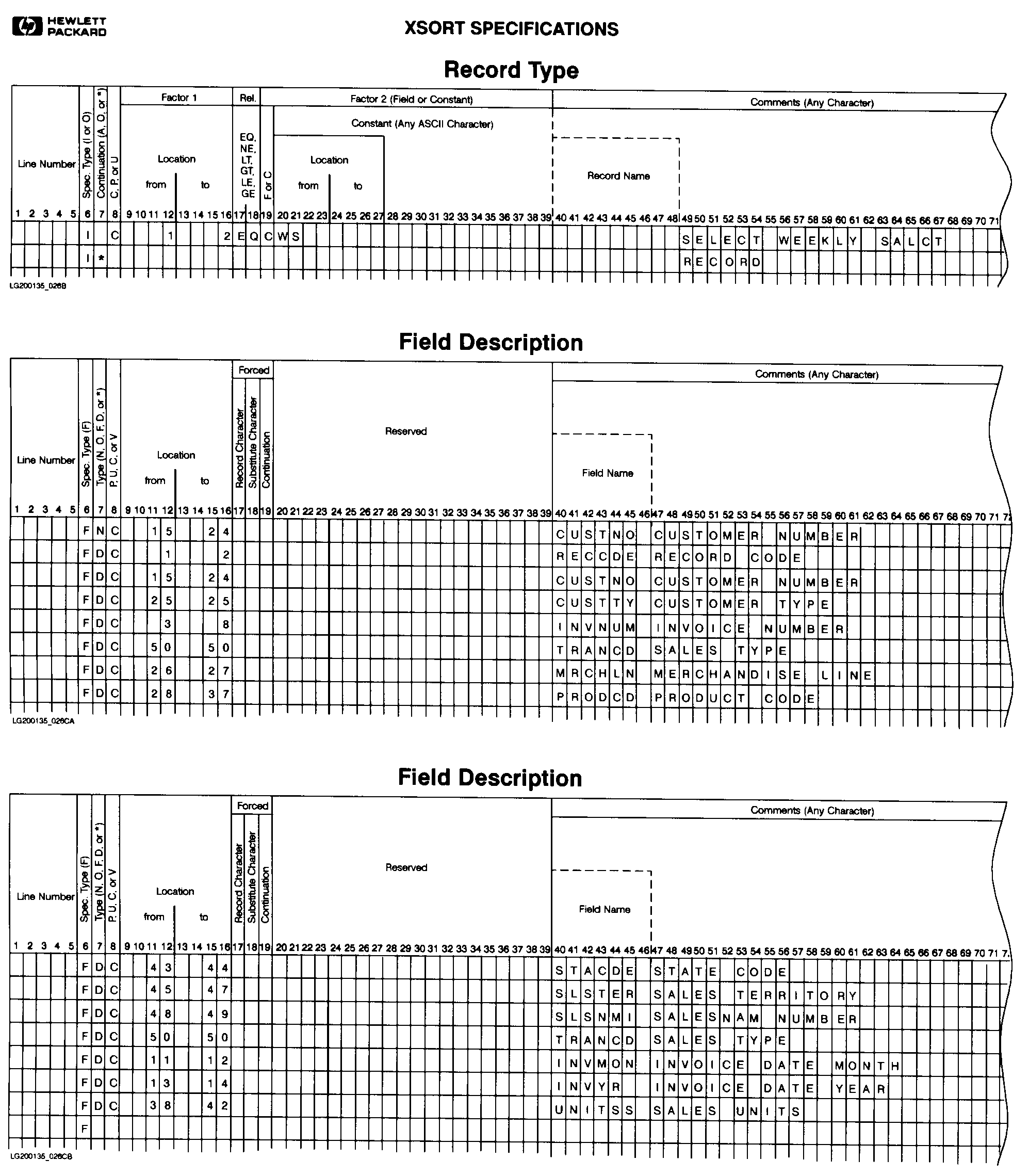

Here are the specifications as they would appear at the terminal and on
the specification form.
HSORTR 20A 34
I C 40EQC1 SELECT CAN.ORD.
I* IND.= 1
FNC 3 12 CUSTNO CUSTOMER #
FNC 23 32 PRODCD PRODUCT CODE
FDC 13 13 CUSTTY CUSTOMER TYPE
FDC 20 20 ORDTYP ORDER TYPE
FDC 37 39 SLSNM1 SALESMAN NUMBER
FDC 41 42 DATEMM DATE MONTH
FDC 43 44 DATEYY DATE YEAR
FDC 45 49 UNITS5 ORDER UNITS

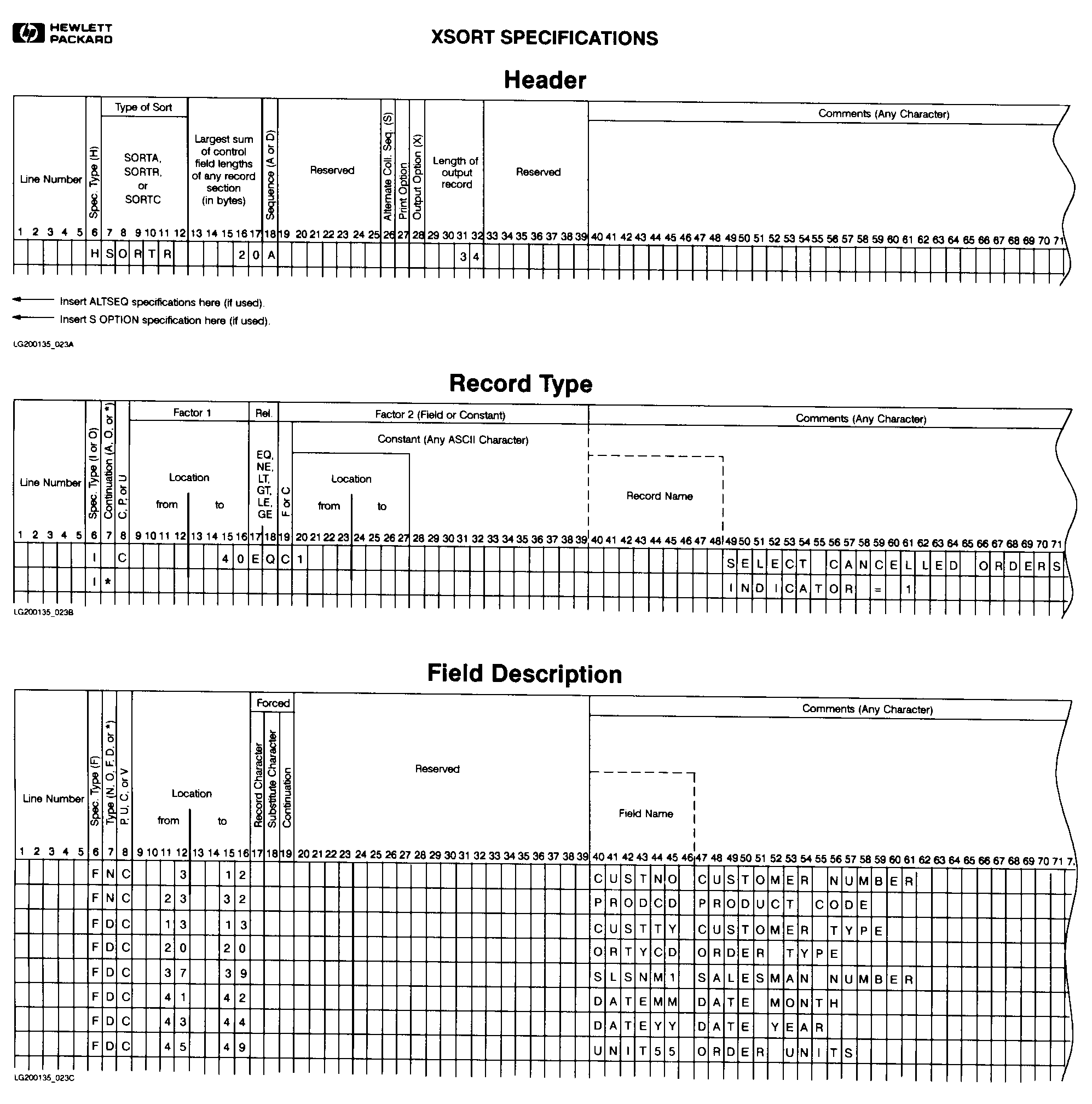

![[]](../../pic3k/M010190/F08023c50.gif)
Explanation of Specifications.
Header Specification.
Column 6 The H entry identifies this as the Header line.
Columns 7-12 SORTR identifies this as a Record-out sort.
Columns 13-17 Total length of the sort control fields for this sort is
20. The total is derived from adding CUSTNO (10
characters) and PRODCO (10 characters).
Column 18 The A means the output sequence will be in ascending
order by CUSTNO and PRODCO.
Columns 29-32 34 is the total length of output records. The control
fields are not being dropped in this sort so their total
(20 characters) is added to the 14 character sum derived
from adding the six data fields in the sort.
Record Type Specifications.
Column 6 The I identifies this an an include line. Input records
which match the criteria specified by this line will be
used in the sort. Those which fail to meet the criteria
will be omitted.
Column 7 The * indicates a comment line.
Column 8 Use only complete characters--one byte (eight bits)--in
making comparisons.
Columns 9-12 Because the input record field for factor 1 is only one
character long, this entry is left blank.
Columns 13-16 Input record position where factor 1 field begins and
ends is position 40.
Columns 17-18 EQ means factor 1 must equal factor 2.
Column 19 The C means factor 2 is a constant.
Column 20 This is where the value of the constant is entered. In
this instance, 1 is the factor 2 constant.
Field Description Specifications.
Column 6 The F identifies this as a field specification line.
Column 7 The N indicates that this is a normal control field.
The D's in the column define the data fields.
Column 8 The C tells the sort to use complete characters--1 byte
(8 bits).
Columns 9-12 3, 23, and the other numbers indicate record positions
where field start. They are the "from" positions.
Columns 13-16 These are the positions in the records where the fields
end. They are the "to" positions.
Here is the output of the sort.
1111111111AAA555555555505018156789
2111111112DDD444444446606028167890
2111111112XXX888888882202028123456
4111111114VVV666666664404118123457
4111111114ZZZ999999991101018112345
7111111117LLL777777773303128123456
Sample Sort 2
This sort produces a record address file for the selected records of the
Sales History File. Records are selected when they contain specific
combinations of Sales Territory (SLSTER) and Merchandise Line (MRCHLN).
The output of this sort is a record address file containing relative
record numbers for the selected records. The sequences will be Garment
Type Code and Merchandise Line within the garment type. A hex dump of
the output is followed by a simple RPG program which utilizes the output
in a meaningful report.
Two additional tasks are performed here:
1. It is desired to combine the Garment Type Codes 2 and 3 into a
single category for sorting purposes. Therefore, a "3" will be
substituted for a "2" wherever it is encountered in the Garment
Type code field. (This is a conditional force on the control
field.)
2. An opposite sort is performed on units booked (UNITSB) to put the
bookings in descending sequence within Merchandise Line.
Here are the specifications as they would appear at the terminal and on
the specification form.
HSORTA 10A
I C 15 16EQC01 SELECT TERR. 01
IAC 64 65EQC05 MERCH. LINE 05
IOC 15 16EQC01 OR
IAC 64 65EQC09 SELECT TERR. 01
I* MERCH. LINE 09
FNC 31 FORCE TO EQ.CD.2
FFC 3123X GARTCD AND CODE 3
FNC 64 65 MRCHLN MERCHANDISE LINE
FOC 36 42 UNITSB UNITS BOOKED

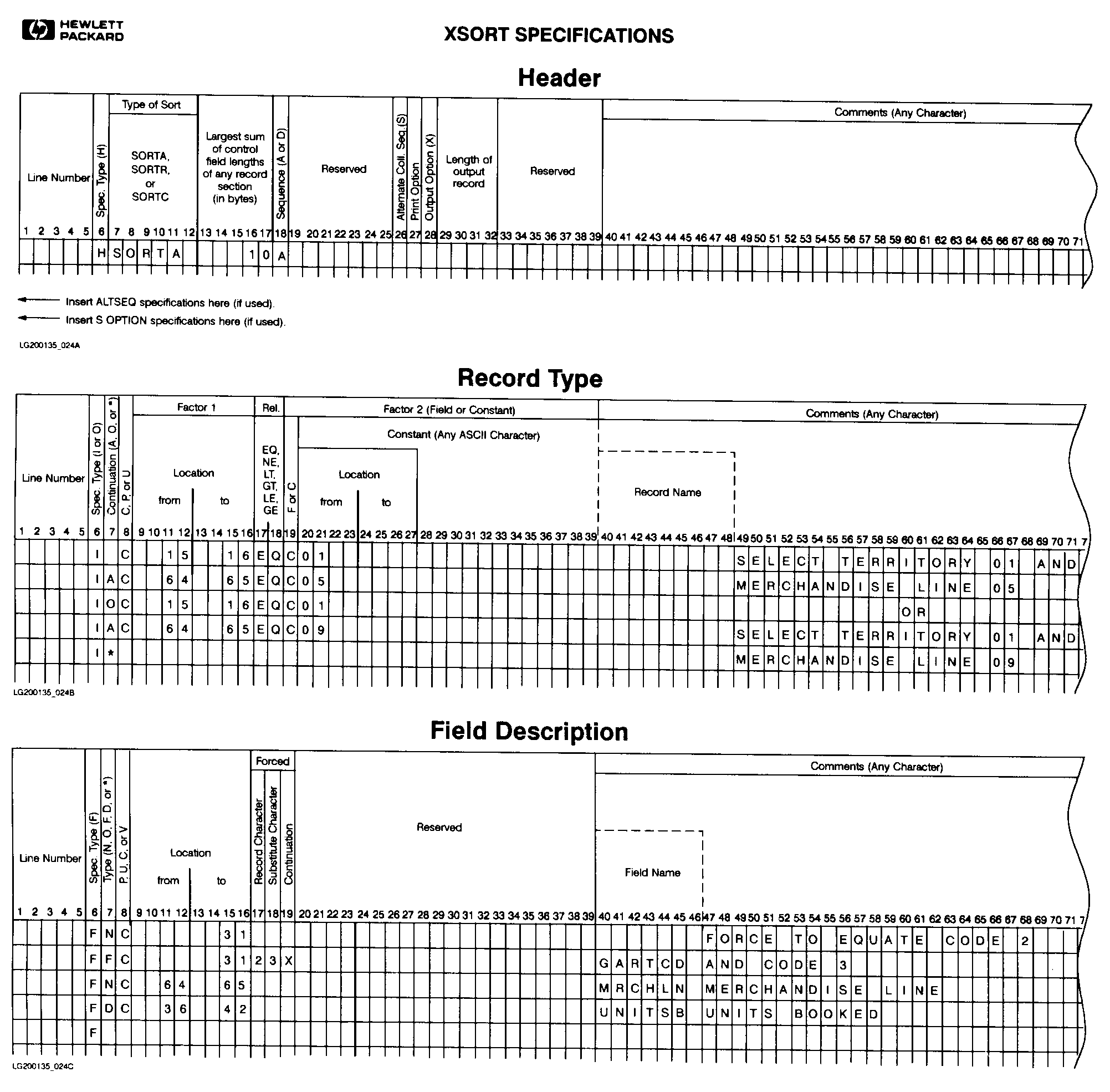

![[]](../../pic3k/M010190/F08033c50.gif)
Explanation of Specifications.
Header Specification.
Column 6 The H identifies this as the Header line.
Columns 7-12 SORTA identifies this as an Address-out sort.
Columns 13-17 10 is the largest sum of all control field lengths. It
is derived generally from adding all control fields
designated with an F, N, or 0 in column 7 for each
record type. This case is an exception because a forced
control field is being used. It will overlay the
position in the work record occupied by the character it
is forcing and, therefore, will not contribute to the
total control field length.
Columns 18 The A indicates that the sorted records will be in
ascending order by control fields.
Record Type Specifications.
Column 6 The I identifies this as an include line. The input
records matching the criteria specified by this line
will be used by the sort.
Column 7 Leaving this column blank indicates that this is the
first line of an I (include) set of record type lines.
The * means a comment line.
A identifies an AND line. It signifies that these
specifications continue the definitions of the record
type described in the last record type entry.
O entered here stands for OR. It means that these
specifications define a different type of record than
the one on the previous line.
Column 8 A "C" here means a character is used in comparisons.
Columns 9-12 The numbers 15 and 64, entered twice here, indicate the
position where the factor 1 field begins.
Columns 13-16 The numbers 16 and 65 entered here indicate where the
factor 1 field ends.
Columns 17-18 Factor 1 will be compared with factor 2, which is a
constant in all cases here. EQ means you want the two
factors to be equal.
Column 19 The C identifies factor 2 as a constant.
Columns 20-23 The entries 01, 05, 01, and 09 are two-character
constants. The zeros are entered here because the
control fields are all two characters long, and
constants must be the same size as control fields. (You
can leave the positions presently occupied by zeros
blank. It is important, however, to keep the entries
right justified.)
Field Description Specifications.
Column 6 The F identifies this as a field description line.
Column 7 The N identifies it as a normal control field.
O means opposite control field.
F indicates that one control field will be forced into
position. In this case it will overlay the position in
the work record occupied by the previous control
field--if the conditions of the force operations are
met.
Columns 9-12 The numbers entered in this column identify the starting
position of a control field in a record.
Columns 13-16 These numbers identify the end position of a control
field in a record. Note that 31, which is a field that
is only one position in length, is only entered once, at
the end position.
Column 17 The 2 is the character that must be in this control
field in order for a 3 (defined in column 18) to be
forced into the work record.
Column 18 The 3 is the character which will replace the control
field in the work record if the control field equals 2
(defined in column 17).
Since this is an Address-out sort, a hex dump of the output is provided.
SRTUT RECORD 0 (%0, #0)
00000: 0000 0002
SRTUT RECORD 1 (%1, #1)
00000: 0000 0001
SRTUT RECORD 2 (%2, #2)
00000: 0000 000B
SRTUT RECORD 3 (%3, #3)
00000: 0000 0003
SRTUT RECORD 4 (%4, #4)
00000: 0000 0004
SRTUT RECORD 5 (%5, #5)
00000: 0000 0005
SRTUT RECORD 6 (%6, #6)
00000: 0000 0006
SRTUT RECORD 7 (%7, #7)
00000: 0000 0007
A simple RPG program has been devised to make use of the output of the
sort.
PAGE 0001 HEWLETT PACKARD 32104A.04.07 RPG/3000 (C) HEWLETT-PACKARD CO. 1978.
WED, MAR 11, 1981, 10:24 AM
0001 $CONTROL USLINIT
0002 H 1
0003 FHISTORY IP F 101R I DISK
0004 FRAF IRE F 4 4 T EDISK
0005 FREPORT 0 F 132 0V LLP
0006 E RAF HISTORY
0007 LREPORT 66FL 60OL
0008 IHISTORY NS 01
0009 I 3 12 CUSTNO
0010 I 31 31 GARTCD
0011 I 32 350DATE
0012 I 36 420UNITSB
0013 C TOTAL ADD UNITSB TOTAL 90
0014 0REPORT H 201 1P
0015 0 OR 0V
0016 0 UDATE Y 16
0017 0 51 "SALES HISTORY LISTING"
0018 0 PAGE Z 72
0019 0 70 "PAGE"
0020 0 H 1 1P
0021 0 OR 0V
0022 0 37 "GRMNT UNITS"
0023 0 58 "CUSTOMER DATE"
0024 0 H 1 1P
0025 0 OR 0V
0026 0 37 "----- -----"
0027 0 58 "---------- -----"
0028 0 D 1 01
0029 0 GARTCD 25
0030 0 UNITSBJ 38
0031 0 CUSTNO 50
0032 0 DATE Y 58
0033 0 T 1 LR
0034 0 TOTAL J 38
Here is the output of the program. You will notice that the sequence
under the heading "GRMNT" (GARMENT) seems to start in descending rather
than ascending order. In fact, a 3 was substituted for each 2 when
encountered in the Garment Type code field, and sorting was done
according to these values.
3/11/81 SALES HISTORY LISTING PAGE 1
GRMNT UNITS CUSTOMER DATE
----- ----- ---------- -----
3 3,456,789 3111111113 2/81
2 2,345,678 2111111112 2/81
2 2,222,221 2111111112 2/81
4 4,444,444 4111111114 1/81
5 5,555,551 5111111115 2/81
6 6,666,661 6111111116 2/81
7 7,777,771 7111111117 2/81
8 8,888,881 8111111118 2/81
41,357,996
Sample Sort 3
This sample sort utilizes the multiple input file feature of XSORT. It
combines the Weekly Bookings file and the Weekly Sales file.
The sequence of the combined output file will be by customer number.
Additionally, the Weekly Sales file is reformatted on output to the
sorted file in order to match the format of the Weekly Bookings file
records.
The file statements required for this sort are:
FILE XSORTIN1=WKBOOK
FILE XSORTIN2=WKSALE
FILE XSORTIN3=HISTUPD

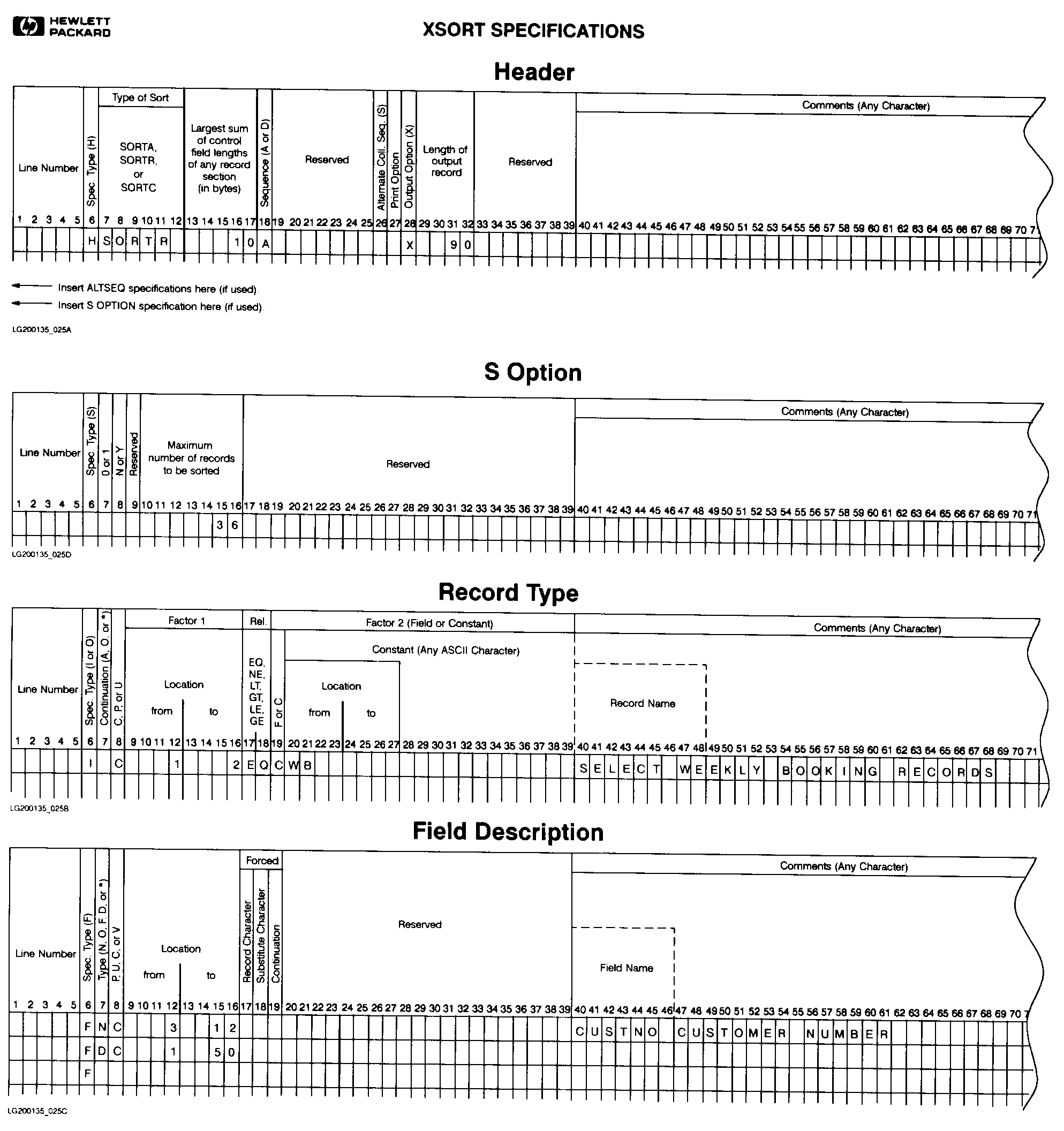

Here are the specifications as they would appear at the terminal and on
the specification form.
HSORTR 10A X 90
S 36
I C 1 2EQCWB SEL.WKLY.BK.REC.
FNC 3 12 CUSTNO CUSTOMER NUMBER
FDC 1 50
I C 1 2EQCWS SELECT WEEKLY
I* SALES RECORD
FNC 15 24 CUSTNO CUSTOMER NUMBER
FDC 1 2 RECCDE RECORD CODE
FDC 15 24 CUSTNO CUSTOMER NUMBER
FDC 25 25 CUSTTY CUSTOMER TYPE
FDC 3 8 INVNUM INVOICE NUMBER
FDC 50 50 TRANCD SALES TYPE
FDC 26 27 MRCHLN MERCHANDISE LINE
FDC 28 37 PRODCD PRODUCT CODE
FDC 43 44 STACDE STATE CODE
FDC 45 47 SLSTER SALES TERRITORY
FDC 48 49 SLSMN1 SALESMAN NUMBER
FDC 50 50 TRANCD SALES TYPE
FDC 11 12 INVMON INVOICEDATEMONTH
FDC 13 14 INVYR INVOICEDATEYEAR
FDC 38 42 UNITSF SALES UNITS
![[]](../../pic3k/M010190/F08043c50.gif)
![[]](../../pic3k/M010190/F08053c50.gif)
Explanation of Specifications.
Header Specification.
Column 6 The H identifies this as the Header line.
Columns 7-12 SORT R identifies this as a Record-out sort.
Columns 13-17 10 is the largest total of control field lengths for
either of the two record sections in the sort. It is
the sum derived from adding together all the control
fields (fields with N, O, or F in column 7 of the Field
Description specifications). In this case, control
field length for the first record section is the same as
that for the second section since it represents the same
field, Customer Number. The field's location changes
due to differences in the record formats of the two
input files.
Column 18 The A indicates that the records in the sorted file will
be in ascending order by control field.
Column 28 The X entered will cause the control fields to be
dropped from the output records.
Columns 29-32 90 is the length of the output records in the Record-out
sort job. In this sort, control fields are being
dropped so the total reflects the largest total of data
fields for any single record section. If the control
fields were being included in the output file, their
largest total (from Header columns 13-17) would be added
to that of the data fields.
S Option.
Column 6 The S indicates that the S Option is being used. In
this case, it is required because of the multiple input
files.
Column 10-16 36 is the maximum number of records to be sorted.
Record Type Specifications (First Record Section).
Column 6 The I entry identifies this as an include line.
Column 7 Leaving this blank identifies this as the first line of
an include set.
Column 8 C means the full character--1 byte (8 bits)--will be
used in comparisons done for this sort.
Columns 9-12 1 is the position in the input record where the factor 1
field begins.
Columns 13-16 2 is the position in the input record where the factor 1
field ends.
Columns 17-18 EQ means that factor 1 must equal factor 2 in the
comparisons.
Column 19 The C identifies factor 2 as a constant rather than a
field.
Columns 20-39 WB is the factor 2 constant.
Field Description Specifications
(First Record Section).
Column 6 F indicates that this is a field description
specification.
Column 7 N identifies a normal control field.
D identifies a data field.
Column 8 C indicates that a full character--1 byte (8 bits)--will
be used.
Columns 9-12 3 is the input record position where the control field
begins. 1 is the input record position where the data
field begins.
Columns 13-16 12 is the input record position where the control field
ends. 50 is the input record position where the data
field ends.
Record Type Specifications
(Second Record Section).
Column 6 I indicates that this is an include line.
Column 7 Leaving this entry blank means that this is the first
line of an include set. The * means comments.
Column 8 C means the full character--1 byte (8 bits)--will be
used in the comparisons.
Columns 9-12 A 1 entered here indicates the position in the record
where the factor 1 field begins.
Columns 13-16 2 entered here indicates the position in the record
where the factor 1 field ends.
Columns 17-18 EQ means that, in the comparisons, factor 1 must equal
factor 2.
Column 19 The C indicates that factor 2 is a constant, not a
field.
Columns 20-27 WS is the factor 2 constant. Note that this is the same
length--2 characters--as the factor 1 field.
Field Description Specifications
(Second Record Section).
Column 6 F indicates that this is a field description line.
Column 7 N identifies this as a normal control field.
D identifies this as a data field.
Column 8 C entered here means the full character--1 byte (8
bits)--will be used in the comparisons.
Column 9-12 These entries identify the position in the input records
where control and data fields begin. Note that Customer
Number, which is used as a control field, is entered
here again as a data field. Since control fields are
being dropped from output records, they must be
redefined as data fields in order to be included as
output.
Columns 13-16 Numbers entered in these columns identify the positions
in the input records where the fields end.
This is the output of the sort.
WS01111111100900003009VVV0000000CA031100018101234
WB11111111115999995505AAA5555555CA0150510181567895
WB11111111119999989109ZZZ9999999CA31202N0281901233
WS11111111119900012905ZZZ9999999CA011019028112345
WS12111111121900002109ZZZ9999999CA031111018123456
WB21111111128999998205XXX8888888TX0120210281234568
WB21111111124999994605DDD4444444CA0160610281678904
WB21111111120999990009XXX0000000CA21101N0281901232
WS21111111128900011805XXX8888888CA011028028123456
WS23111111132900001209XXX8888888CA031122018134567
WS31111111137900010705LLL7777777TX011037018134567
WB41111111149999999105ZZZ9999999CA0110110181123459
W841111111146999996405VVV6666666NV0140411181234570
WB41111111142999992809ZZZ2222222CA91808N0181890122
WB41111111148999988209ZZZ8888888CA41303N1281901234
WS41111111146900009605VVV6666666AZ011046018145678
WS51111111155900008505AAA5555555CA011055018156789
WS51111111153900006309JJJ3333333CA031073018178901
WS61111111164900007405DDD4444444CA011064018167890
WB71111111177999997305LLL7777777AZ0130311281234569
WB71111111173999993709LLL3333333CA81707N0281789013
WB71111111171999991909ZZZ1111111CA11909Y0181901231
WS81111111182900005209GGG2222222CA031082018189012
WS91111111191900004109ZZZ1111111CA031091018190123
