Product HP AdvanceNet RJE/XL Node Manager's Guide Printed in U.S.A. Printed Aug 1990 HP Part No. 30295-61002 Edition 2
Notice Hewlett-Packard makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. Hewlett-Packard assumes no responsibility for the use or reliability of its software on equipment that is not furnished by Hewlett-Packard. Æ Copyright 1989, 1990 Hewlett-Packard Company. This document contains proprietary information, which is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company. The information contained in this document is subject to change without notice. Hewlett-Packard Co. 19420 Homestead Rd. Cupertino, CA 95014 U.S.A. Printing History New editions are complete revisions of the manual. Update packages, which are issued between editions, contain additional and replacement pages to be merged into the manual by the customer. The dates on the title page change only when a new edition or a new update is published. No information is incorporated into a reprinting unless it appears as a prior update; the edition does not change when an update is incorporated. Note that many product updates and fixes do not require manual changes and, conversely, manual corrections may be done without accompanying product changes. Therefore, do not expect a one-to-one correspondence between product updates and manual updates. Edition 1 November 1989 Edition 2 August 1990
List of Effective Pages The List of Effective Pages gives the date of the current edition and of any pages changed in updates to that edition. Within the manual, any page changed since the last edition is indicated by printing the date the changes were made on the bottom of the page. Changes are marked with a vertical bar in the margin. If an update is incorporated when an edition is reprinted, these bars are removed but the dates remain. No information is incorporated into a reprinting unless it appears as a prior update. Pages Effective Date All November 1989 All August 1990

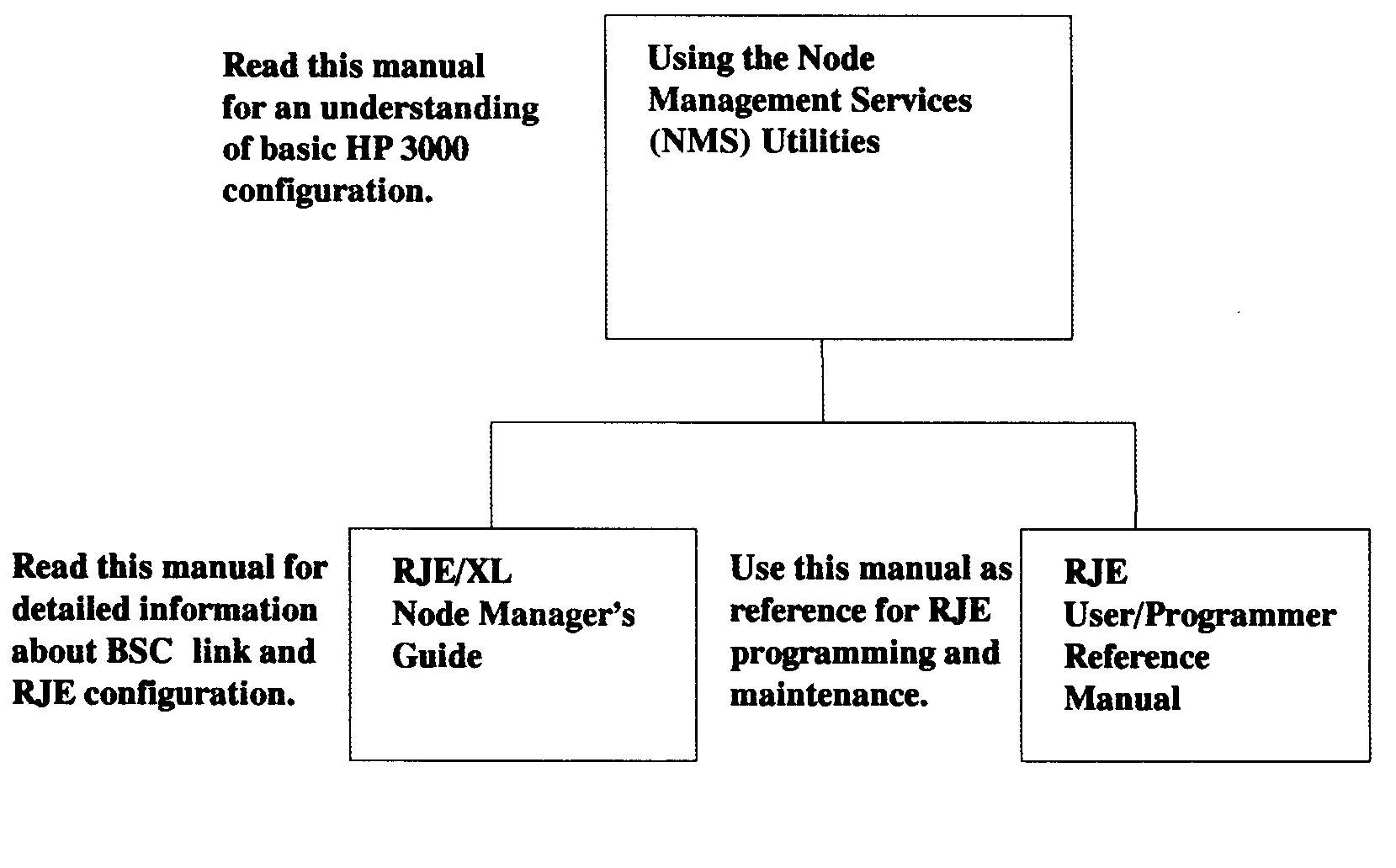

Documentation Map The following documentation map shows the structure of the RJE/XL documentation set and related manauls. The manauls are intended to be used together.Preface This manual describes the Hewlett-Packard Remote Job Entry Subsystem, RJE. RJE emulates the IBM 2780 Data Transmission Terminal and the IBM 3780 Data Communication Terminal, making it possible for you to exchange data between your HP 3000 Computer and a variety of remote processors. The communication occurs over the public telephone switched network or over private leased lines. Audience This manual assumes that you have a working knowledge of MPE XL and that you have some familiarity with either the IBM 2780 or the IBM 3780. Knowledge of the IBM Binary Synchronous Communications (BSC) line protocol conventions would be useful but is not required. Organization This manual is arranged as follows: Chapter 1, Introduction to RJE/XL, introduces RJE/XL and discusses the contents of the manual, product features, capabilities and required system environment. Chapter 2, RJE/XL BSC Link Installation Guidelines, describes the RJE/XL installation procedures. Chapter 3, Configuring Host Systems to Include RJE/XL, describes the steps necessary to configure the host for running RJE/XL. Chapter 4, Configuring MPE/XL Systems to Include RJE/XL, describes the steps necessary to configure MPE XL for running RJE/XL. Chapter 5, Setting Up RJE/XL for Programmatic Mode, describes how to set up RJE/XL for programmatic mode. Chapter 6, Troubleshooting RJE/XL, describes tools, utilities, and procedures to be used in troubleshooting RJE/XL and the BSC link. Chapter 7, Trace Formatter, discusses the trace listing format. Appendix A, Interpreting Messages, lists and discusses the error messages. Appendix B, System Requirement Details, lists the details of hardware and software requirements for RJE/XL subsystem operation. Appendix C, IBM 2780 and IBM 3780, describes the characteristics of the IBM 2780/3780 terminals and their RJE emulators. Appendix D, RJE/V versus RJE/XL, describes the differences between RJE/V and RJE/XL. Helpful Manuals You may also wish to consult one of the following manuals. HP Manuals System Manager/System Supervisor Reference Manual (30000-90014) Console Operator's Guide: Series II, III, 30, 33 and 44 (32002-90004) MPE XL Commands Reference Manual (32650-60002) MPE XL Intrinsics Reference Manual (32650-60013) NS/3000 User/Programmer Reference Manual (36920- 61000) System Error Messages and Recovery Reference Manual (30000-90015) MPE File System Manual (30000-90236) HP 3000 MPE XL Installation and Update Manual (36123-90001) HP 3000 MPE XL ADD-ON Manual (36123-90003) RJE User/Programmer Reference Manual (30295- 61001) IBM Manuals System Programming Library: JES2 Installation, Initialization, and Tuning (SC23-0046) JES3 System Programming Library: Initialization and Tuning (SC23-0041) IBM 3704 and 3705 Control Program Generation and Utilities Guide and Reference Manual (GC30-3008) NCP, SSP and EP Generation and Loading Guide (SC30-3348) NCP, SSP and EP Resource Definition Guide (SC30- 3349) NCP, SSP and EP Resource Definition Reference (SC30-3254) NCP, SSP and EP Resource Definition Reference (SC30-3448) NCP, SSP and EP Resource Definition Guide (SC30- 3447) VSE/POWER Installation and Operations Guide (SH12-5329) Virtual Machine: Remote Spooling Communications Subsystem Networking (version 2, release 3) Planning and Installation Manual (SH24-5058) Operation and Use Manual (SH24-5057) Network Control Program Migration Guide (SC30- 3440) Component Information for the IBM 3780 Data Communication Terminal (GA27-3063) IBM 2780 Data Transmission Terminal, IBM SRL (GA27-3005) IBM 3780 Data Communication Terminal, IBM SRL (GA27-3063) Syntax Conventions nonitalics Words in syntax statements which are not in italics must be entered exactly as shown. Punctuation characters other than brackets, braces, and ellipses must also be entered exactly as shown. For example: EXIT; italics Words in syntax statements that are in italics denote a parameter that must be replaced by a user-supplied variable. For example: CLOSE filename [ ] An element inside brackets in a syntax statement is optional. Several elements stacked inside brackets indicates the user may select any one or none of these elements. For example: [A] [B] User may select A or B or C or none. [C] { } When several elements are stacked within braces in a syntax statement, the user must select one of those elements. For example: {A} {B} User must select A or B or C. {C} ... A horizontal ellipsis in a syntax statement indicates that a previous element may be repeated. For example: [,itemname]...; In addition, vertical and horizontal ellipses may be used in examples to indicate that portions of the example have been omitted. Å When necessary for clarity, the symbol Å may be used in a syntax statement to indicate a required blank or an exact number of blanks. For example: SET[modifier] Å (variable) underlining Brackets, braces, or ellipses appearing in syntax or format statements which must be entered as shown will be underlined. For example: LET var[[subscript]] = value Output and input/output parameters are underlined. A notation in the description of each parameter distinguishes input/output from output parameters. For example: CREATE (parm1,parm2,flags,error) [Key Cap] A string in bold font enclosed by brackets may be used to indicate a key on the terminal's keyboard. For example, [ENTER] indicates the carriage return key. [CTRL]-char Control characters are indicated by [CTRL] followed by the character. For example, [CTRL]-Y means the user presses the control key and the Y key simultaneously.
